GR443DR73D472KW01L - Murata Electronics

Description: MURATA - GR443DR73D472KW01L - CAPACITOR, MLCC, X7R, 4700PF, 2KV, 1812

Download GR443DR73D472KW01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GR443DR73D472KW01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

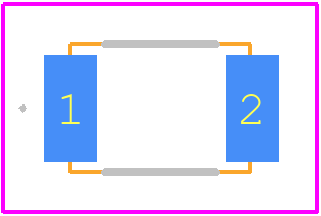

GR443DR73D472KW01L - Murata Electronics PCB footprint - Other - Other - GR443_2024
click to zoom
3D Models
GR443DR73D472KW01L - Murata Electronics - 3D model - Other - GR443_2024
click to zoom

GR443DR73D472KW01L Details

  • Manufacturer Part Number:

    GR443DR73D472KW01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.0047 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    180mm Reel Embossed Tape

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    2000 V

  • Size Code:

    4532M/1812

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    3.2 mm

GR443DR73D472KW01L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the GR443DR73D472KW01L can be found in the Murata Land Pattern document, which provides detailed guidelines for PCB layout and pad design.
  • The GR443DR73D472KW01L is a moisture-sensitive device. To handle it safely, follow the guidelines outlined in the IPC/JEDEC J-STD-033 standard for handling moisture-sensitive devices.
  • The ESR of the GR443DR73D472KW01L is not explicitly stated in the datasheet. However, according to Murata's application notes, the ESR of similar capacitors in the GR43 series is typically around 10-20 mΩ.
  • The GR443DR73D472KW01L is rated for operation up to 125°C. However, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure reliable operation in high-temperature applications.
  • The capacitance tolerance of the GR443DR73D472KW01L is ±10%. This means that the actual capacitance value may vary by up to 10% from the nominal value of 4.7 μF.
