GR5-326-0891 - CW Industries

Description: Direct Insert DPDT 125V Slide Switches ROHS Panel Mount

Download GR5-326-0891 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this GR5-326-0891 model

Email notifications will be applied after download.

Send part feedback

Symbol

GR5-326-0891 - CW Industries - PCB symbol

PCB Footprints

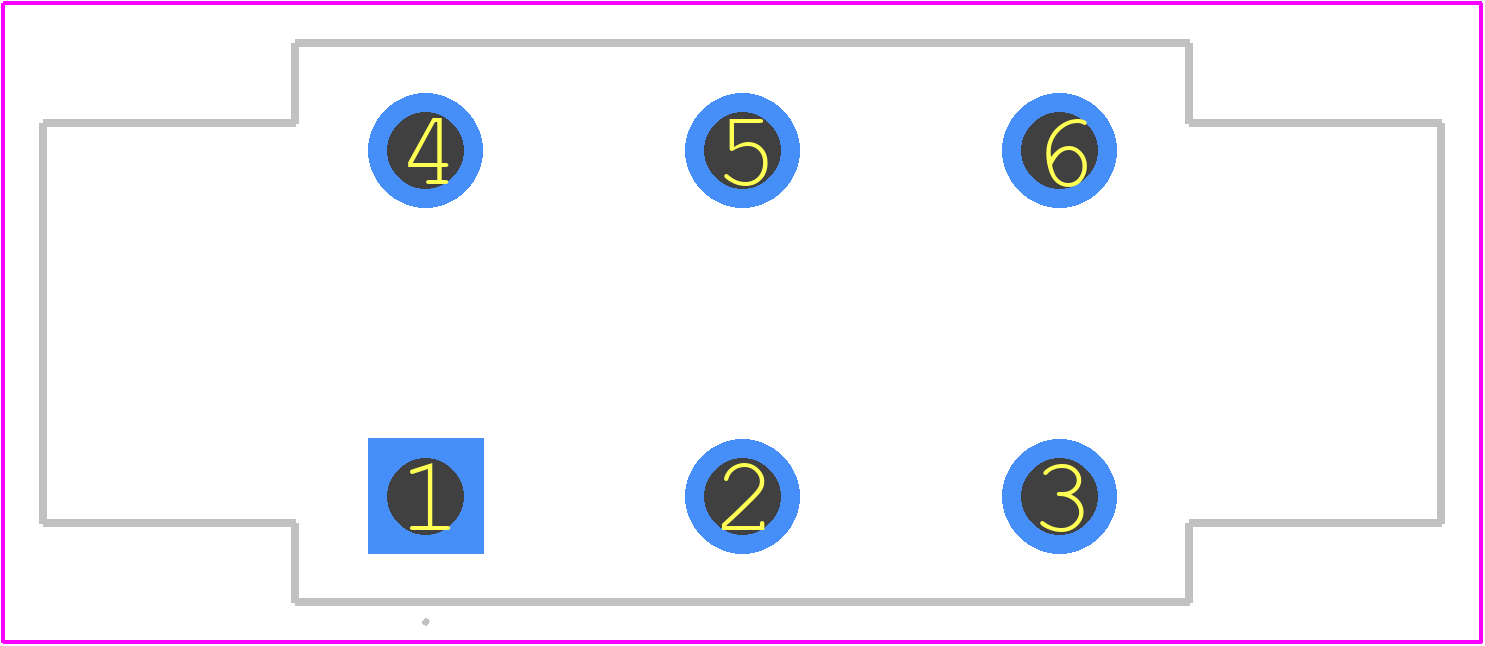

GR5-326-0891 - CW Industries PCB footprint - Other - Other - GR5-326-0891-3

3D Models

GR5-326-0891 - CW Industries - 3D model - Other - GR5-326-0891-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for GR5-326-0891
Part Number GR5-326-0891
Manufacturer CW Industries
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - GR5-326-0891-3
Released Date Nov 7, 2024
Last Modified Date Nov 7, 2024 5:17 AM UTC
Pinout / Pin List Click Here (Member Only)

GR5-326-0891 Details

Manufacturer Part Number:
GR5-326-0891
Part Life Cycle Code:
Active Unconfirmed
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
CW Industries
YTEOL:
2
Actuator Color:
RED
Actuator Length:
0.754 inch
Actuator Type:
ROCKER
Body Height:
7.3152 mm
Body Length or Diameter:
22.352 mm
Mounting Feature:
PANEL MOUNT
Surface Mount:
NO
Switch Function:
DPDT
Switch Type:
ROCKER SWITCH
Terminal Length:
0.3 inch
Termination Type:
QUICK CONNECT

Trust Checks

Community Provided

System Verified

Community Approved

GR5-326-0891 Overview

Use the download button to access the GR5-326-0891 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GR5-3, or try a keyword search, such as Rocker Switches
