Part Image

GRF1-P-P-08-E-ST-TH1 - SAMTEC

Description: RF Connectors / Coaxial Connectors 5.00 mm 50 Ohm Ganged Micro-Miniature RF Plug, Cable Assembly

Download GRF1-P-P-08-E-ST-TH1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

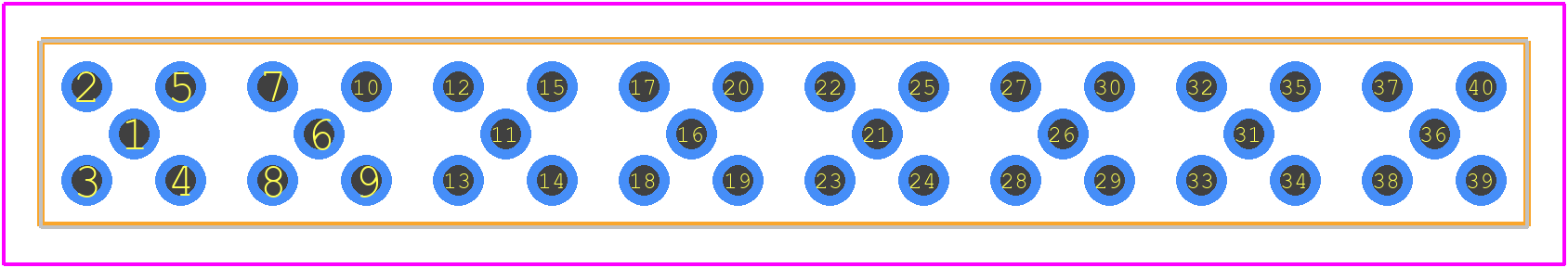

GRF1-P-P-08-E-ST-TH1 - SAMTEC PCB footprint - Other - Other - GRF1-P-P-08-E-ST-TH1-1
click to zoom

GRF1-P-P-08-E-ST-TH1 Details

  • Manufacturer Part Number:

    GRF1-P-P-08-E-ST-TH1

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Samtec Inc

  • Risk Rank:

    2.12

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.177 inch

  • Body Length:

    1.576 inch

  • Body/Shell Style:

    PLUG

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Mating:

    GOLD (50) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Resistance:

    5 mΩ

  • Contact Style:

    COAX

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    700VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    8

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3.6 A

  • Shell Material:

    BRASS

  • Terminal Length:

    0.11 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GRF1-P-P-08-E-ST-TH1 Overview

Use the download button to access the GRF1-P-P-08-E-ST-TH1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF1-, or try a keyword search, such as Other RF Connectors
