Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
Guerrilla RF provides a set of recommended matching networks in the application notes. However, the optimal matching network may vary depending on the specific application and board layout. Engineers can use simulation tools such as ADS or AWR to optimize the matching networks for their specific design.
The GRF2004 is rated for operation from -40°C to 105°C. However, the device may still function above 105°C, but the performance and reliability may be degraded. Engineers should ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
The GRF2004 requires a specific bias voltage and current to operate optimally. Engineers should ensure that the bias voltage is set to the recommended value (typically 3.3V or 5V) and that the bias current is limited to the recommended maximum value (typically 100mA). A voltage regulator and current limiter may be required to ensure proper biasing.
Guerrilla RF recommends using ESD protection devices such as TVS diodes or ESD arrays on the input and output pins of the GRF2004 to protect against electrostatic discharge. The recommended ESD protection devices should be capable of withstanding at least 2kV of ESD voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF2004 Overview

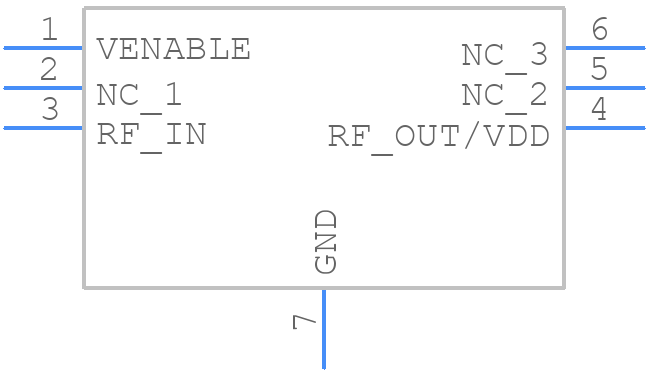

Use the download button to access the GRF2004 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF20,
or try a keyword search, such as RF/Microwave Amplifiers
