Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
Guerrilla RF provides a set of recommended matching networks in the datasheet, but these may need to be optimized for specific frequencies, impedances, and applications. Engineers can use simulation tools like ADS or AWR to optimize the matching networks for their specific use case.
The GRF2011 is rated for operation from -40°C to +125°C, but the device may be derated for high-temperature operation. Engineers should consult the datasheet and Guerrilla RF's application notes for more information on temperature derating and thermal management.
The GRF2011 requires a specific bias voltage and current to operate optimally. Engineers should follow the recommended biasing scheme outlined in the datasheet, and ensure that the bias voltage and current are stable and well-regulated.
The GRF2011 has built-in ESD protection, but engineers should still follow proper ESD handling and storage procedures to prevent damage to the device. This includes using ESD-safe workstations, handling the device by the package rather than the pins, and storing the device in ESD-safe packaging.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
GRF2011 Overview

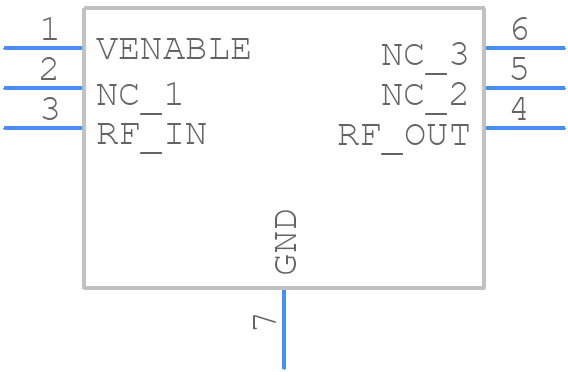

Use the download button to access the GRF2011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF20,
or try a keyword search, such as RF/Microwave Amplifiers
