- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GRF2070
- Part Number GRF2070
- Manufacturer Guerrilla RF
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 2.0 x 2.0 DFN-8
- Released Date Jan 11, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GRF2070 Details
-
Manufacturer Part Number:
GRF2070
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
DFN-8
-
Manufacturer:
Guerrilla RF
-
Construction:
COMPONENT
-
Gain:
20 dB
-
Input Power-Max (CW):
23 dBm
-
Mounting Feature:
SURFACE MOUNT
-
Number of Functions:
1
-
Number of Terminals:
8
GRF2070 Frequently Asked Questions (FAQs)
-
Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
-
Optimization involves selecting the right external components, such as inductors and capacitors, and adjusting the biasing and matching networks. Guerrilla RF provides application notes and design guides to help with this process.
-
The GRF2070 can handle up to 33 dBm of input power, but the maximum power handling capability depends on the specific application and operating conditions. It's recommended to consult with Guerrilla RF's application engineers for specific guidance.
-
Guerrilla RF recommends following proper ESD handling procedures during assembly and testing, and using ESD protection devices on the input and output pins of the GRF2070.
-
Guerrilla RF provides test and measurement guidelines in their application notes and datasheet. It's recommended to use a network analyzer and a signal generator to characterize the device's performance.
Trust Checks
Community Provided
System Verified
Community Approved
GRF2070 Overview

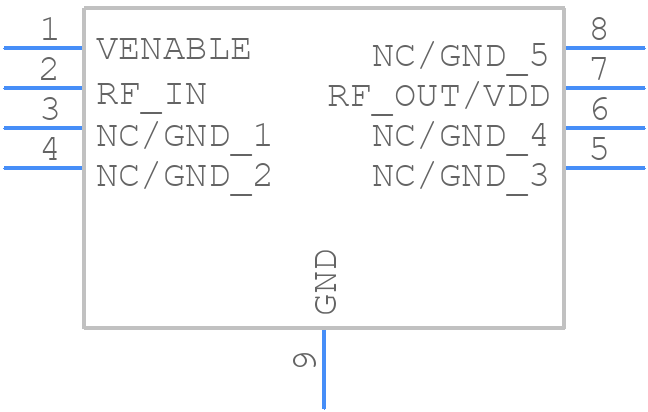

Use the download button to access the GRF2070 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF20,
or try a keyword search, such as RF/Microwave Amplifiers
