GRF2071 - Guerrilla RF

Description: RF Amplifier .7-2.7GHz GaAs Gain 19dB

Download GRF2071 Model

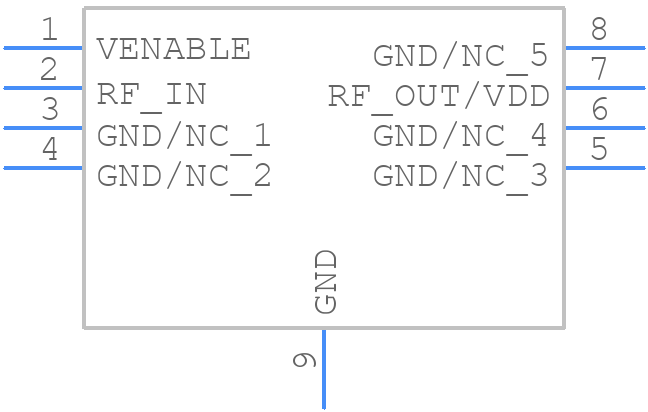

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GRF2071 - Guerrilla RF PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN 8
click to zoom
3D Models
GRF2071 - Guerrilla RF  - 3D model - Small Outline No-lead - DFN 8
click to zoom

GRF2071 Details

  • Manufacturer Part Number:

    GRF2071

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DFN-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Guerrilla RF

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    2

GRF2071 Frequently Asked Questions (FAQs)

  • Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or π-match topology and adjust component values to achieve the desired impedance match and maximum gain.
  • Guerrilla RF recommends a resistive biasing scheme with a voltage-controlled current source. Set the quiescent current by adjusting the voltage on the VBIAS pin, and ensure that the current is within the recommended range for optimal performance.
  • Implement a thermal management system that monitors the device temperature and reduces the power consumption or shuts down the device when the temperature exceeds the recommended limit. Ensure good airflow, use a heat sink, and optimize the PCB layout to minimize thermal resistance.
  • Handle the device with ESD-protective equipment and follow standard ESD handling procedures. Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins to protect against electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GRF2071 Overview

Use the download button to access the GRF2071 schematic symbol, PCB footprint, and 3D model.
