GRF2072 - Guerrilla RF

Description: -40 +105°C RF Amplifier 2.3-3.8GHz GaAs Gain 19.3dB DFN-8 Package

Download GRF2072 Model

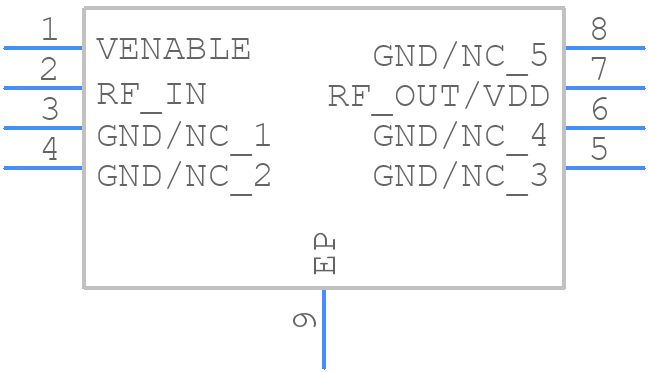

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GRF2072 - Guerrilla RF PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8_2X2MM
click to zoom
3D Models
GRF2072 - Guerrilla RF  - 3D model - Small Outline No-lead - DFN8_2X2MM
click to zoom

GRF2072 Details

  • Manufacturer Part Number:

    GRF2072

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DFN-8

  • Manufacturer:

    Guerrilla RF

  • Construction:

    COMPONENT

  • Gain:

    18.8 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    2

GRF2072 Frequently Asked Questions (FAQs)

  • Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or pi-match topology and adjust component values based on simulation results and measurement data.
  • Operate the GRF2072 within the recommended temperature range of -40°C to 85°C, and ensure the device is not exposed to moisture or humidity. Avoid exceeding the maximum junction temperature of 150°C.
  • Use a combination of simulation tools, oscilloscope measurements, and circuit analysis to identify the root cause of the issue. Check for impedance mismatches, parasitic inductance, and capacitive coupling, and adjust the circuit accordingly.
  • Use a vector network analyzer (VNA) to measure S-parameters, and a spectrum analyzer to measure gain, noise figure, and output power. Use a calibrated load and a high-impedance probe to minimize measurement errors.
