- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for GRF2080
- Part Number GRF2080
- Manufacturer Guerrilla RF
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - GRF2080*1
- Released Date Nov 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GRF2080 Details
-
Manufacturer Part Number:
GRF2080
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
DFN-8
-
Manufacturer:
Guerrilla RF
-
Construction:
COMPONENT
-
Gain:
19.5 dB
-
Input Power-Max (CW):
23 dBm
-
Mounting Feature:
SURFACE MOUNT
-
Number of Functions:
1
-
Number of Terminals:
8
GRF2080 Frequently Asked Questions (FAQs)
-
Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
-
Guerrilla RF provides a set of recommended matching networks in the application notes. However, the optimal matching network will depend on the specific application and frequency band. Engineers can use simulation tools such as ADS or AWR to optimize the matching networks for their specific use case.
-
The GRF2080 is rated for operation from -40°C to 105°C. However, the device may be able to operate at higher temperatures with reduced performance and reliability. Engineers should consult with Guerrilla RF for specific guidance on operating temperature range.
-
The GRF2080 requires a specific bias voltage and current to operate optimally. Engineers should follow the recommended biasing scheme outlined in the datasheet and application notes, and ensure that the bias voltage and current are stable and well-regulated.
-
The GRF2080 has internal ESD protection, but it is still sensitive to electrostatic discharge. Engineers should follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
Trust Checks
Community Provided
System Verified
Community Approved
GRF2080 Overview

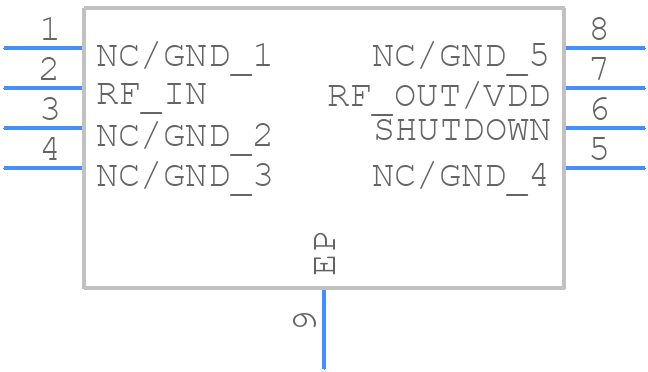

Use the download button to access the GRF2080 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF20,
or try a keyword search, such as RF/Microwave Amplifiers
