GRF2081 - Guerrilla RF

Description: RF Amplifier 1.4-2.7GHz GaAs Gain 18.2dB

Download GRF2081 Model

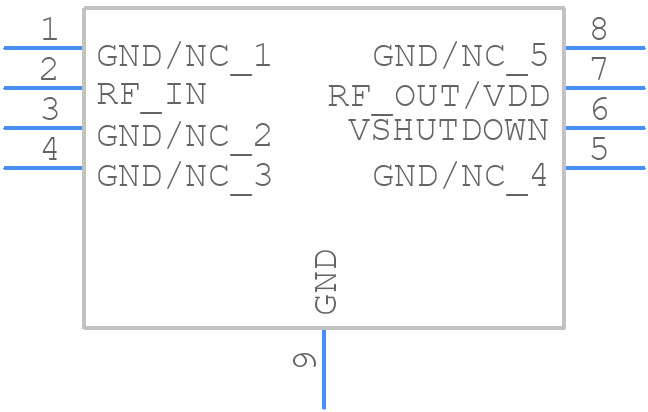

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GRF2081 - Guerrilla RF PCB footprint - Small Outline No-lead - Small Outline No-lead - 2.0 x 2.0 mm DFN-8
click to zoom
3D Models
GRF2081 - Guerrilla RF  - 3D model - Small Outline No-lead - 2.0 x 2.0 mm DFN-8
click to zoom

GRF2081 Details

  • Manufacturer Part Number:

    GRF2081

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DFN-8

  • Manufacturer:

    Guerrilla RF

  • Construction:

    COMPONENT

  • Gain:

    17.5 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    95 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    2

GRF2081 Frequently Asked Questions (FAQs)

  • Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or pi-match topology and adjust component values based on simulation results and measurement data.
  • Operate the GRF2081 within the recommended temperature range of -40°C to 85°C, and ensure the device is not exposed to moisture or mechanical stress. Follow proper soldering and handling procedures to prevent damage.
  • Use a combination of simulation tools, measurement equipment, and debugging techniques to identify and isolate issues. Check for proper PCB layout, component values, and soldering quality. Consult the datasheet and application notes for troubleshooting guides.
  • Operating the GRF2081 outside the recommended frequency range may result in reduced performance, instability, or damage to the device. Ensure the device is operated within the specified frequency range for optimal performance and reliability.
