Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or pi-match topology and adjust component values to achieve the desired impedance match and maximum gain.
Operate the GRF2105 within the recommended temperature range of -40°C to 85°C, and ensure the device is not exposed to moisture or humidity. Avoid exceeding the maximum junction temperature of 150°C to prevent thermal damage.
Use a combination of simulation tools, oscilloscopes, and spectrum analyzers to identify and troubleshoot issues. Check for proper PCB layout, component selection, and biasing conditions. Ensure the device is properly terminated and matched to the load.
Handle the GRF2105 with ESD-protective equipment and follow proper handling procedures to prevent damage. The device has built-in ESD protection, but it is not a substitute for proper handling and storage procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF2105 Overview

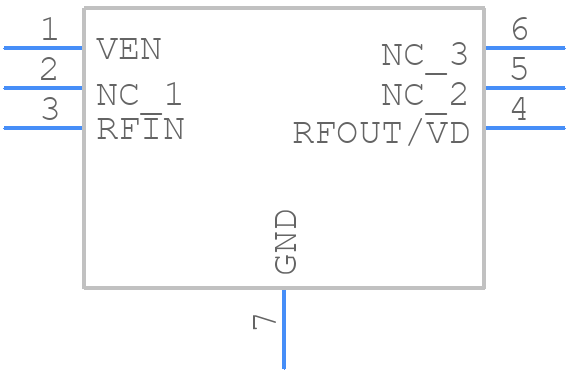

Use the download button to access the GRF2105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF21,
or try a keyword search, such as RF/Microwave Amplifiers
