Guerrilla RF recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane or a heat sink.
Optimization involves selecting the right external components, such as inductors and capacitors, and adjusting the biasing and matching networks. Guerrilla RF provides application notes and design guides to help with this process.
The GRF2133 has built-in ESD protection, but handling precautions are still necessary. Use an ESD wrist strap or mat, and avoid touching the device's pins or handling it in environments with high static electricity.
Yes, but impedance matching networks may be required to optimize performance. Guerrilla RF provides guidance on impedance matching and can provide custom designs upon request.
The GRF2133 has undergone rigorous qualification tests, including temperature cycling, humidity, and vibration testing, to ensure reliability and robustness in various operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF2133 Overview

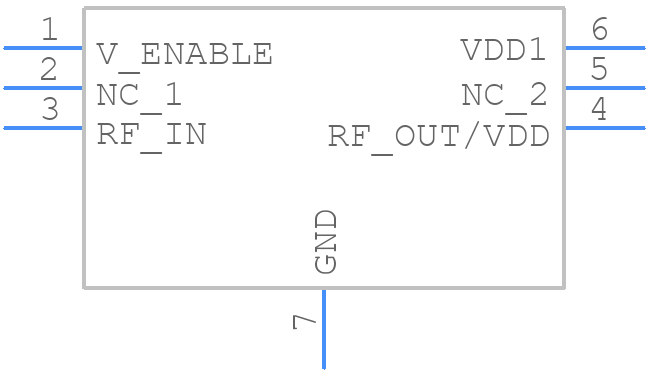

Use the download button to access the GRF2133 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF21,
or try a keyword search, such as RF/Microwave Amplifiers
