Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or pi-match topology and adjust component values based on simulation results and measurement data.
Operate the GRF2140 within the recommended temperature range of -40°C to 85°C, and ensure that the device is not exposed to excessive voltage, current, or power density. Follow proper handling and storage procedures to prevent damage.
Use a combination of simulation tools, measurement equipment, and empirical methods to troubleshoot issues. Check for proper PCB layout, component values, and soldering quality. Verify that the device is operated within the recommended conditions and that the input and output matching networks are optimized.
Use a vector network analyzer (VNA) to measure S-parameters, and a spectrum analyzer to measure output power and spectral purity. Use a signal generator to provide a stable input signal, and a power meter to measure output power.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF2140 Overview

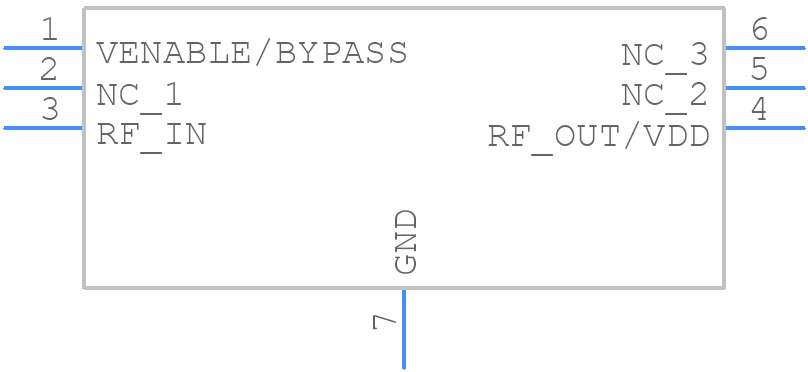

Use the download button to access the GRF2140 schematic symbol, PCB footprint, and 3D model.
