Part Image

GRF2584 - Guerrilla RF

Description: Gain Levels Up to 36.5 dB Noise Figure Levels as Low as 1 dB Excellent Linearity Performance Supports Tuning Over Wide Bands 2.7 to 6 V Supply Voltage Flexible Biasing Provides Latitude for Linearity Optimization 50 mA Native Mode Quiescent Current Consumption 50 Ω Single-Ended Input and Output Impedances RoHS Compliant

Download GRF2584 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

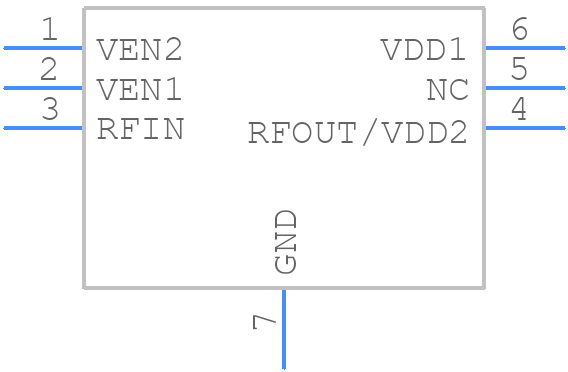

GRF2584 - Guerrilla RF - PCB symbol
click to zoom
PCB Footprints
GRF2584 - Guerrilla RF PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN 1.5 x 1.5 6l
click to zoom
3D Models
GRF2584 - Guerrilla RF - 3D model - Small Outline No-lead - DFN 1.5 x 1.5 6l
click to zoom

GRF2584 Details

  • Manufacturer Part Number:

    GRF2584

  • Manufacturer:

    Guerrilla RF

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GRF2584 Overview

Use the download button to access the GRF2584 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF25, or try a keyword search, such as RF/Microwave Amplifiers

Parts related to GRF2584

Showing 0 results
