Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a thermal plane on the PCB.
Optimization involves selecting the right external components, such as inductors and capacitors, and adjusting the biasing and matching networks. Guerrilla RF provides a reference design and application notes to help with this process.
The GRF5010 can handle up to 33 dBm of input power, but the maximum power handling capability depends on the specific application and operating conditions. It's recommended to consult with Guerrilla RF's application engineers for specific guidance.
Guerrilla RF recommends following proper ESD handling procedures during assembly and testing, and using ESD protection devices on the input and output pins of the GRF5010.
The GRF5010 is specified to operate from -40°C to 85°C, but it can be operated at temperatures up to 105°C with reduced performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF5010 Overview

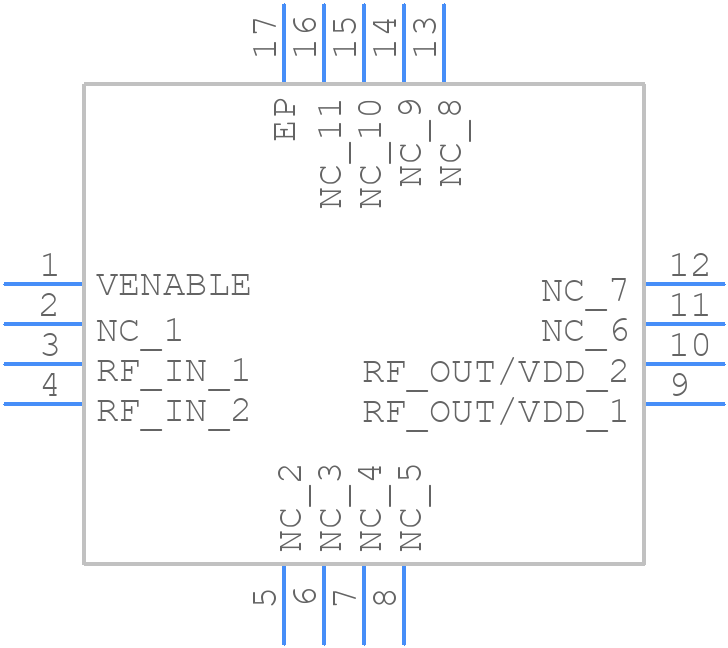

Use the download button to access the GRF5010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF50,
or try a keyword search, such as RF/Microwave Amplifiers
