GRF5509 - Guerrilla RF

Description: RF Amplifier High Efficiency, 5.0Watt PA/Saturated PA, OP1dB >34.0 dBm, 900 MHz ISM; 0.7 - 01.8 GHz

Download GRF5509 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GRF5509 - Guerrilla RF PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-16A
click to zoom
3D Models

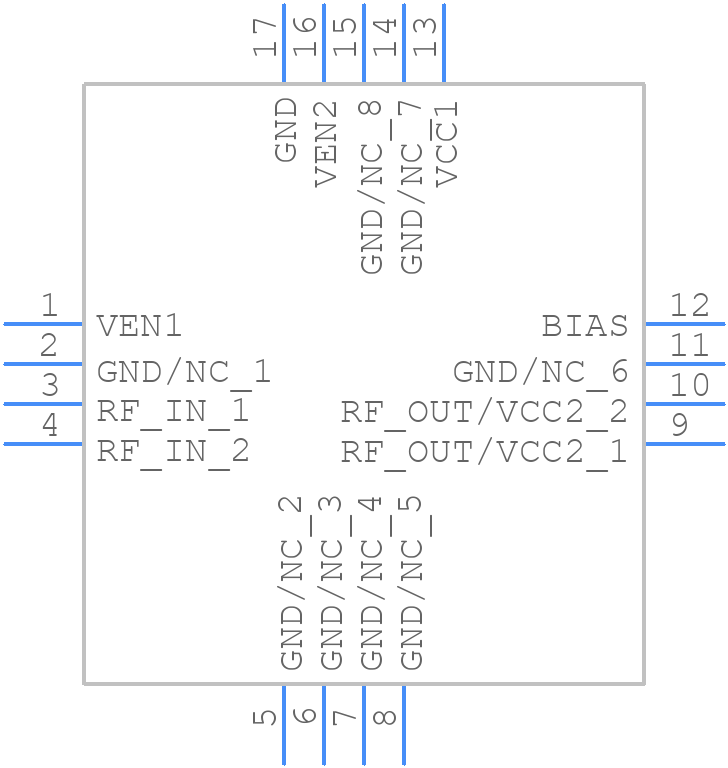

GRF5509 - Guerrilla RF  - 3D model - Quad Flat No-Lead - QFN-16A
click to zoom

GRF5509 Details

  • Manufacturer Part Number:

    GRF5509

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-16

  • Manufacturer:

    Guerrilla RF

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    31.4 dB

  • Input Power-Max (CW):

    13 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • VSWR-Max:

    2

GRF5509 Frequently Asked Questions (FAQs)

  • Guerrilla RF recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or π-match topology and adjust component values to achieve the desired impedance match and maximum gain.
  • The GRF5509 is recommended to operate within the following conditions: Vdd = 3.3V to 5V, Idq = 30mA to 50mA, and Tj = -40°C to 125°C. Operating outside these conditions may affect performance and reliability.
  • Follow the recommended biasing scheme in the datasheet, which includes a voltage regulator and a bias resistor network. Ensure the bias voltage is stable and within the recommended range to achieve optimal performance.
  • Handle the GRF5509 with ESD-protective equipment and follow proper handling procedures to prevent damage. Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the device pins or exposed die.
