The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the GRF7-J-P-04-GF-ST-TH1 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
The GRF7-J-P-04-GF-ST-TH1 connector is rated for operating temperatures ranging from -55°C to 125°C, making it suitable for high-temperature applications.
The GRF7-J-P-04-GF-ST-TH1 connector has a mating cycle life of 500 cycles minimum, according to Samtec's specifications.
Yes, the GRF7-J-P-04-GF-ST-TH1 connector is designed for automated assembly and is compatible with standard pick-and-place machines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GRF7-J-P-04-GF-ST-TH1 Overview

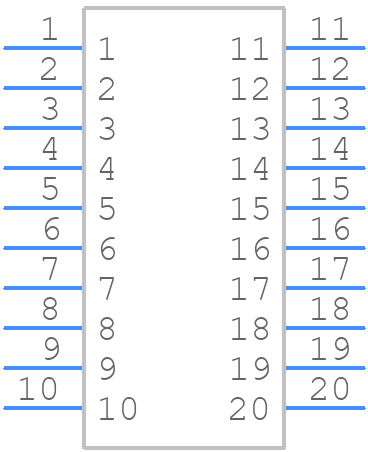

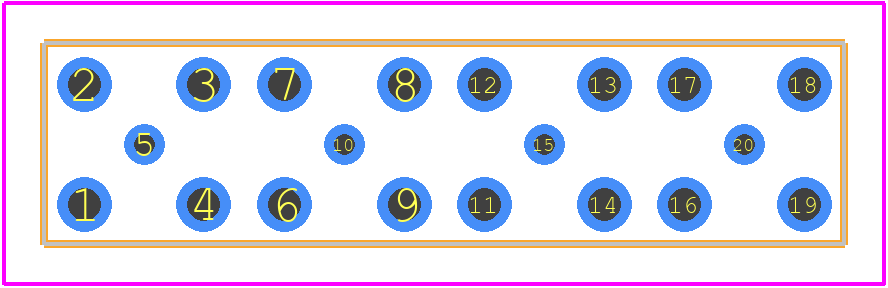

Use the download button to access the GRF7-J-P-04-GF-ST-TH1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF7-,
or try a keyword search, such as Other RF Connectors
