GRF7-P-P-04-GF-ST-TH1 - SAMTEC

Description: 5.00 mm 75 Ohm Ganged Micro-Miniature RF Plug, Cable Assembly

Download GRF7-P-P-04-GF-ST-TH1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

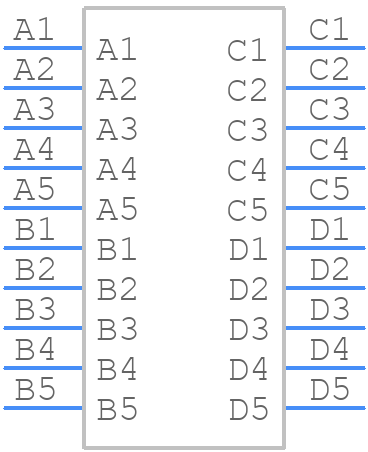

GRF7-P-P-04-GF-ST-TH1 - SAMTEC - PCB symbol
click to zoom
PCB Footprints
GRF7-P-P-04-GF-ST-TH1 - SAMTEC PCB footprint - Other - Other - GRF7-P-P-04-GF-ST-TH1-3
click to zoom
3D Models
GRF7-P-P-04-GF-ST-TH1 - SAMTEC - 3D model - Other - GRF7-P-P-04-GF-ST-TH1-3
click to zoom

GRF7-P-P-04-GF-ST-TH1 Details

  • Manufacturer Part Number:

    GRF7-P-P-04-GF-ST-TH1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Samtec Inc

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.177 inch

  • Body Length:

    0.788 inch

  • Body/Shell Style:

    PLUG

  • Characteristic Impedance:

    75 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BERYLLIUM COPPER

  • Coupling Type:

    SNAP

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • JESD-609 Code:

    e4

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

GRF7-P-P-04-GF-ST-TH1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the GRF7-P-P-04-GF-ST-TH1 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
  • The operating temperature range for the GRF7-P-P-04-GF-ST-TH1 is -40°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the GRF7-P-P-04-GF-ST-TH1 is compatible with lead-free soldering processes, including RoHS and WEEE compliant soldering.
  • The GRF7-P-P-04-GF-ST-TH1 has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GRF7-P-P-04-GF-ST-TH1 Overview

Use the download button to access the GRF7-P-P-04-GF-ST-TH1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRF7-, or try a keyword search, such as Other RF Connectors
