GRM43DR7LV224KW01L - Murata Electronics

GRM43DR7LV224KW01L Frequently Asked Questions (FAQs)

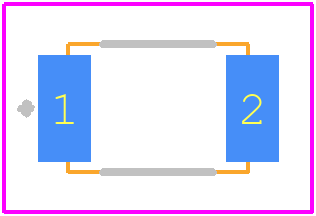

• What is the recommended land pattern for this capacitor?
  Murata provides a recommended land pattern for the GRM43DR7LV224KW01L capacitor in their documentation. It is essential to follow this pattern to ensure proper mounting and soldering of the component.
• How do I handle the capacitor during assembly to prevent damage?
  To prevent damage, handle the capacitor by the body, avoiding touching the terminals. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge. Avoid bending, flexing, or applying excessive force to the component.
• What is the maximum voltage derating for this capacitor?
  The maximum voltage derating for the GRM43DR7LV224KW01L capacitor is typically 80% of the rated voltage. This means that if the capacitor is rated for 16V, the maximum operating voltage should be 12.8V (80% of 16V) to ensure reliable operation and prevent premature failure.
• Can I use this capacitor in a high-temperature environment?
  The GRM43DR7LV224KW01L capacitor is rated for operation up to 125°C. However, it's essential to consider the derating curve and ensure that the capacitor is not subjected to temperatures above its rated maximum. Prolonged exposure to high temperatures can affect the capacitor's performance and lifespan.
• How do I store the capacitor to maintain its shelf life?
  Store the GRM43DR7LV224KW01L capacitor in a cool, dry place, away from direct sunlight and moisture. Avoid storing the capacitor in areas with high humidity or extreme temperatures. Use anti-static packaging materials and follow proper storage procedures to maintain the component's shelf life.
