GRPB122VWQS-RC - Sullins

Description: Connector Header Surface Mount 24 position 0.050" (1.27mm)

Download GRPB122VWQS-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

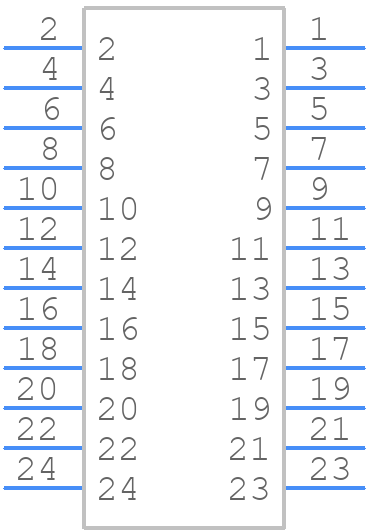

GRPB122VWQS-RC - Sullins - PCB symbol
click to zoom
PCB Footprints
GRPB122VWQS-RC - Sullins PCB footprint - Other - Other - GRPB122VWQS-RC-5
click to zoom
3D Models
GRPB122VWQS-RC - Sullins - 3D model - Other - GRPB122VWQS-RC-5
click to zoom

GRPB122VWQS-RC Details

  • Manufacturer Part Number:

    GRPB122VWQS-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.4

  • Body Breadth:

    0.134 inch

  • Body Depth:

    0.079 inch

  • Body Length:

    0.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold Flash (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

GRPB122VWQS-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of GRPB122VWQS-RC is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the GRPB122VWQS-RC connector is designed to withstand high-vibration environments. Its rugged construction and secure screw terminals ensure reliable connections even in applications with intense vibration or shock.
  • Yes, the GRPB122VWQS-RC connector is suitable for outdoor or harsh environments. It has a sealed construction and meets IP67 standards, making it resistant to dust, water, and other environmental factors.
  • The maximum operating temperature of the GRPB122VWQS-RC connector is 125°C (257°F). It's essential to ensure that the connector does not exceed this temperature to maintain its performance and reliability.
  • Yes, the GRPB122VWQS-RC connector is designed to be compatible with automated assembly processes. Its compact size and secure screw terminals make it suitable for robotic assembly and other automated manufacturing processes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GRPB122VWQS-RC Overview

Use the download button to access the GRPB122VWQS-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GRPB1, or try a keyword search, such as Headers and Edge Type Connectors
