GRPB501VWCN-RC footprint, schematic symbol and 3D model by Sullins

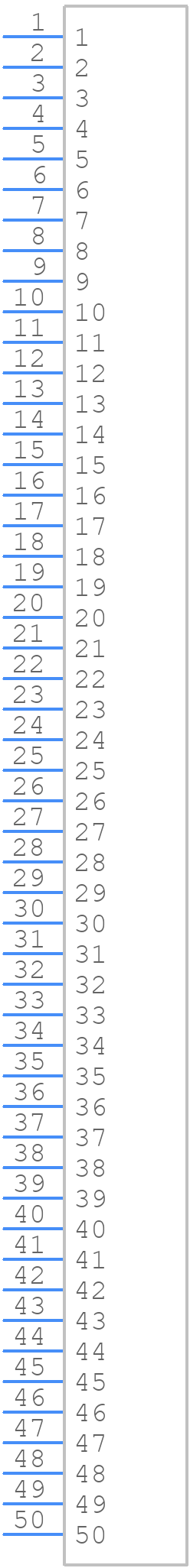

Symbol

click to zoom

PCB Footprints

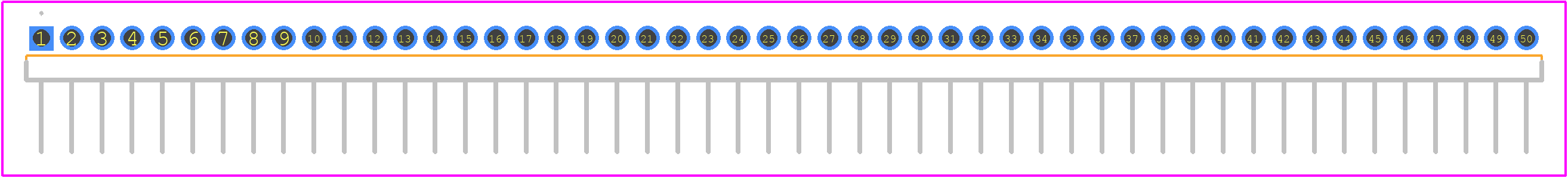

GRPB501VWCN-RC - Sullins PCB footprint - Other - Other - GRPB501VWCN-RC-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GRPB501VWCN-RC
Part Number GRPB501VWCN-RC
Manufacturer Sullins
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - GRPB501VWCN-RC-2
Released Date May 16, 2024
Last Modified Date Jun 25, 2024 8:07 AM UTC
Pinout / Pin List Click Here (Member Only)

GRPB501VWCN-RC Details

Manufacturer Part Number:
GRPB501VWCN-RC
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Sullins Connector Solutions
YTEOL:
9.15
Body Breadth:
0.084 inch
Body Depth:
0.069 inch
Body Length:
2.5 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
AU
Contact Gender:
MALE
Contact Material:
BRASS
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
500VAC V
Filter Feature:
NO
Insulation Resistance:
5000000000 Ω
Insulator Material:
POLYAMIDE
Mating Contact Pitch:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
FLASH inch
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.098 inch
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
50
UL Flammability Code:
94V-0

GRPB501VWCN-RC Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the GRPB501VWCN-RC is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The GRPB501VWCN-RC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
The GRPB501VWCN-RC has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific environmental requirements of your outdoor application.
It's not recommended to use the GRPB501VWCN-RC with a different wire gauge than specified in the datasheet. The connector is designed to work with specific wire gauges, and using a different gauge may compromise the connector's performance, reliability, or even cause damage.

Trust Checks

Community Provided

System Verified

Community Approved

GRPB501VWCN-RC Overview

Use the download button to access the GRPB501VWCN-RC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GRPB5, or try a keyword search, such as Headers and Edge Type Connectors
