GS206F Frequently Asked Questions (FAQs)

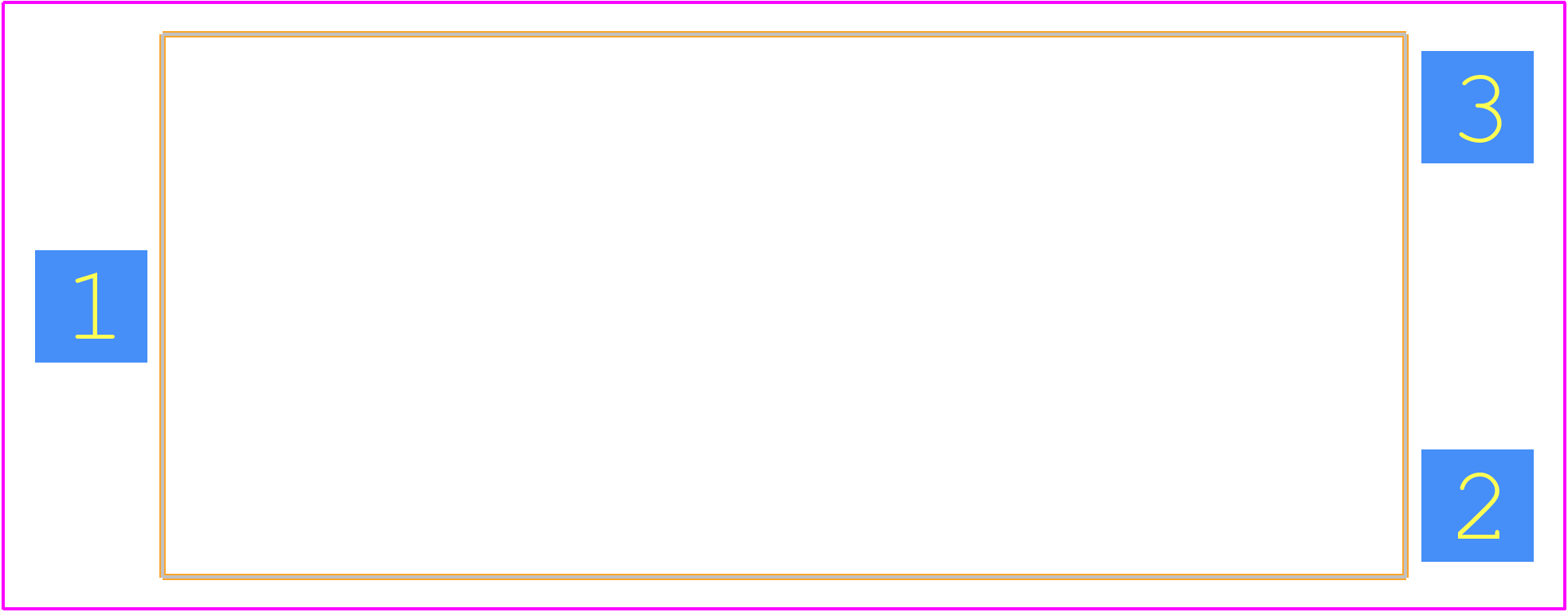

• What is the recommended PCB layout and land pattern for the GS206F?
  CAP-XX recommends a land pattern with a minimum pad size of 3.5mm x 3.5mm and a spacing of 1.5mm between pads. A solid ground plane underneath the device is also recommended to minimize inductance and ensure optimal performance.
• How do I handle the high inrush current during charging?
  To handle high inrush current, it's recommended to use a current limiter or a soft-start circuit to limit the charging current to the recommended maximum value of 10A. This will prevent damage to the device and ensure reliable operation.
• What is the recommended balancing circuit for series-connected GS206F devices?
  CAP-XX recommends using a balancing circuit with a voltage threshold of 2.7V to 2.8V to ensure equal voltage distribution across each device in a series string. A simple resistor divider network or an active balancing IC can be used for this purpose.
• How do I ensure safe operation of the GS206F in high-temperature environments?
  To ensure safe operation, it's recommended to derate the device's capacitance and voltage rating according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal management and airflow around the device to prevent overheating.
• What is the recommended storage and handling procedure for the GS206F?
  Store the GS206F in a dry, cool place away from direct sunlight and moisture. Handle the device by the edges or the pins, avoiding touching the capacitive surfaces to prevent damage or degradation. Use anti-static packaging and follow standard ESD handling procedures.
