GS3490-INE3 - SEMTECH

Description: Equalisers QFN 32-Pin

Download GS3490-INE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

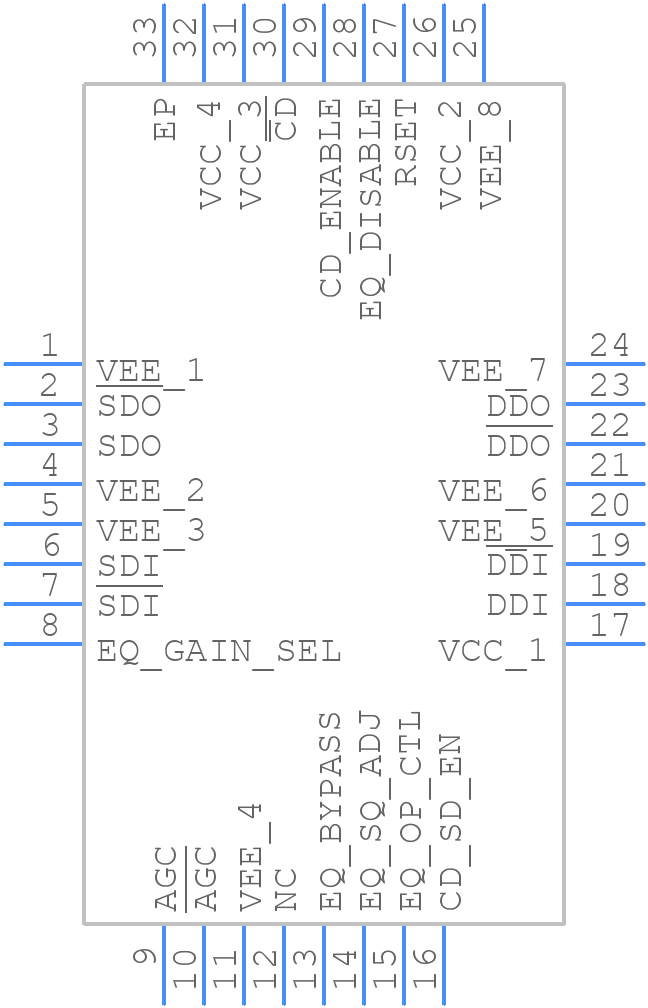

Symbol
GS3490-INE3 - SEMTECH - PCB symbol
click to zoom
PCB Footprints
GS3490-INE3 - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin QFN
click to zoom
3D Models
GS3490-INE3 - SEMTECH - 3D model - Quad Flat No-Lead - 32-pin QFN
click to zoom

GS3490-INE3 Details

  • Manufacturer Part Number:

    GS3490-INE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Semtech Corporation

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    87 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

GS3490-INE3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VBIAS pin is connected to a 1.8V voltage source. Also, ensure the input voltage range is within the recommended specifications.
  • The recommended input signal amplitude is between 100mV and 1V peak-to-peak. Signals outside this range may result in reduced performance or distortion.
  • Use the power-down mode (PD pin) to reduce power consumption when the device is not in use. Also, optimize the clock frequency and voltage supply to minimize power consumption.
  • The maximum clock frequency supported is 150MHz. However, the actual clock frequency may vary depending on the specific application and system requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GS3490-INE3 Overview

Use the download button to access the GS3490-INE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS349, or try a keyword search, such as Analog Transmission Interfaces
