GS816136DD-250I - GSI TECHNOLOGY

Description: SRAM 2.5 or 3.3V 512K x 36 18M

Download GS816136DD-250I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

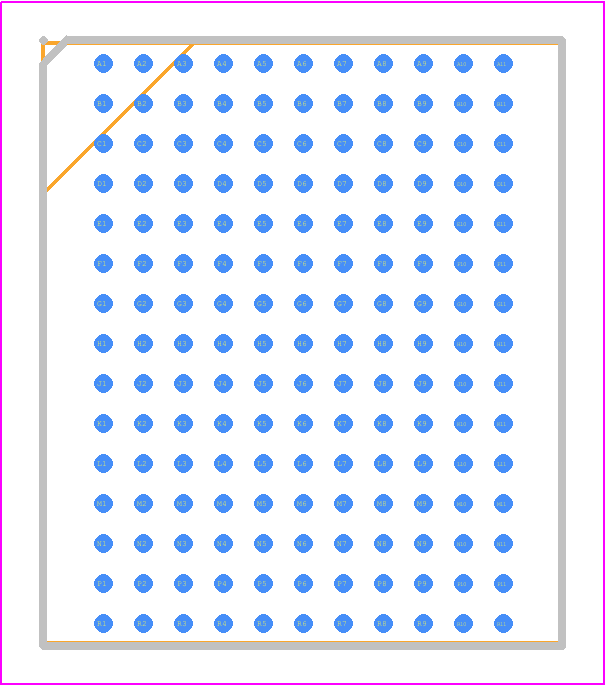

GS816136DD-250I - GSI TECHNOLOGY PCB footprint - BGA - BGA - 165-BGA
click to zoom
3D Models
GS816136DD-250I - GSI TECHNOLOGY  - 3D model - BGA - 165-BGA
click to zoom

GS816136DD-250I Details

  • Manufacturer Part Number:

    GS816136DD-250I

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    165

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.B.2.B

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    GSI Technology

  • YTEOL:

    5

  • Access Time-Max:

    5.5 ns

  • Additional Feature:

    FLOW THROUGH OR PIPELINED ARCHITECTURE, ALSO OPERATES AT 3.3V

  • JESD-30 Code:

    R-PBGA-B165

  • Length:

    15 mm

  • Memory Density:

    18874368 bit

  • Memory IC Type:

    CACHE SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    165

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm
