GS88236CB-333I - GSI TECHNOLOGY

GS88236CB-333I Details

• Manufacturer Part Number:

  GS88236CB-333I

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

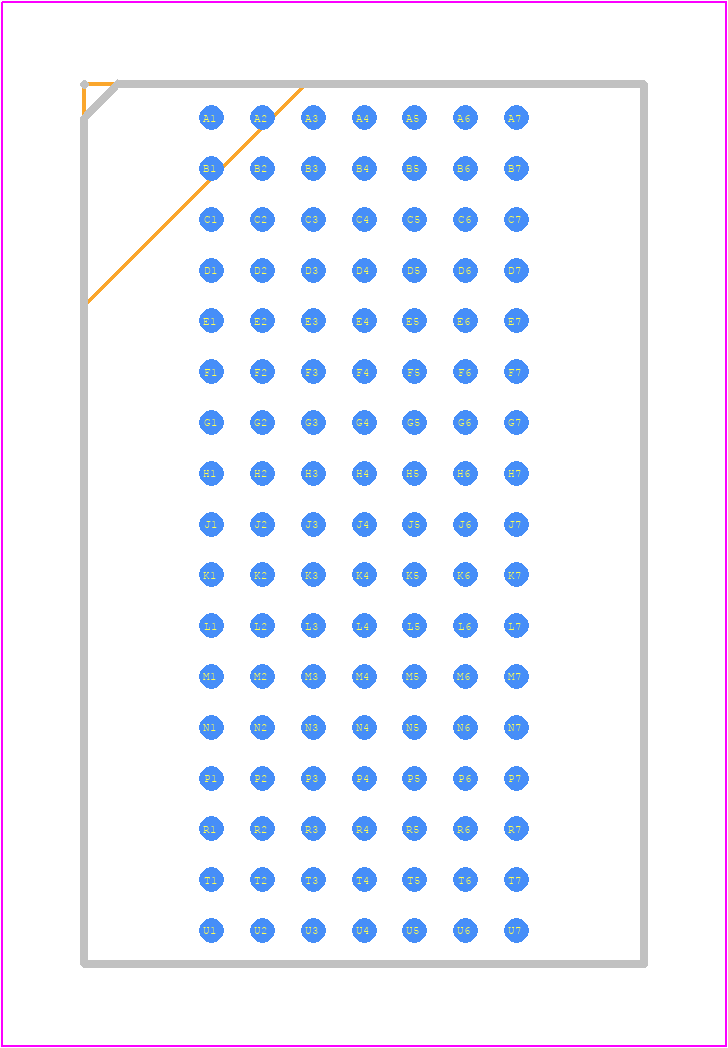

• Part Package Code:

  BGA

• Package Description:

  FPBGA-119

• Pin Count:

  119

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.B.2.B

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  GSI Technology

• YTEOL:

  4.16

• Access Time-Max:

  4.5 ns

• Additional Feature:

  PIPELINED/FLOW-THROUGH ARCHITECTURE, IT ALSO OPERATES WITH 3 V TO 3.6 V SUPPLY

• JESD-30 Code:

  R-PBGA-B119

• JESD-609 Code:

  e0

• Length:

  22 mm

• Memory Density:

  9437184 bit

• Memory IC Type:

  CACHE SRAM

• Memory Width:

  36

• Number of Functions:

  1

• Number of Terminals:

  119

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  256KX36

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.77 mm

• Supply Voltage-Max (Vsup):

  2.7 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  14 mm
