GSB19111KEU - Amphenol

Description: USB Connectors USB 2.0 STANDARD A, UPRIGHT DIP, KINK

Download GSB19111KEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSB19111KEU - Amphenol - PCB symbol
click to zoom

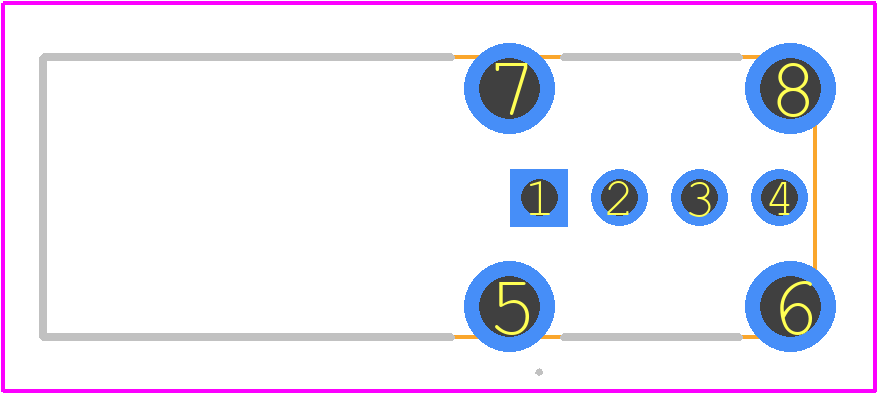

PCB Footprints
GSB19111KEU - Amphenol PCB footprint - Other - Other - GSB19111KEU-1
click to zoom
3D Models
GSB19111KEU - Amphenol - 3D model - Other - GSB19111KEU-1
click to zoom

GSB19111KEU Details

  • Manufacturer Part Number:

    GSB19111KEU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    56 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.276 inch

  • Body Depth:

    0.759 inch

  • Body Length:

    0.575 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB, SER A

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    1500 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    FRONT-BRASS AND REAR-STEEL

  • Terminal Length:

    0.094 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

GSB19111KEU Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the GSB19111KEU connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 2, which includes sinusoidal vibration testing at 10-200 Hz, 2 mm amplitude, and 10 g acceleration.
  • The GSB19111KEU connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The GSB19111KEU connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential derating factors that may affect the connector's performance at extreme temperatures.
  • The GSB19111KEU connector has a moisture resistance rating of IP67, which means it can withstand exposure to humidity. However, it's essential to ensure proper sealing and protection when using the connector in high-humidity environments to maintain its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSB19111KEU Overview

Use the download button to access the GSB19111KEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GSB19, or try a keyword search, such as Telecom and Datacom Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
