GSB3116346FHR - Amphenol

Description: USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle

Download GSB3116346FHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

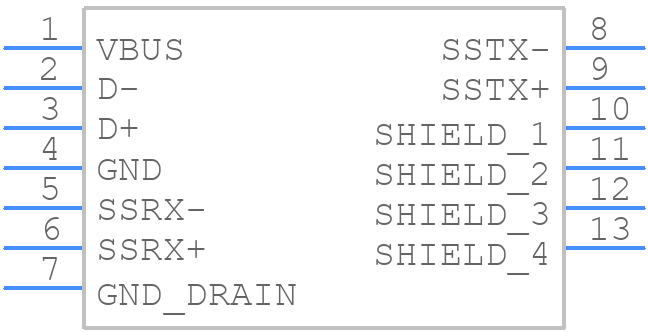

GSB3116346FHR - Amphenol - PCB symbol
click to zoom
PCB Footprints

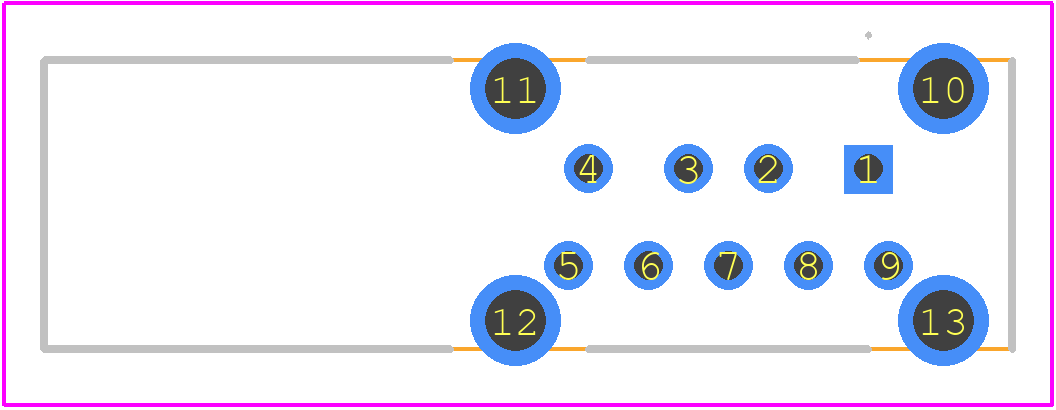

GSB3116346FHR - Amphenol PCB footprint - Other - Other - GSB3116346FHR-1
click to zoom
3D Models
GSB3116346FHR - Amphenol - 3D model - Other - GSB3116346FHR-1
click to zoom

GSB3116346FHR Details

  • Manufacturer Part Number:

    GSB3116346FHR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.47

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.575 inch

  • Body Depth:

    0.953 inch

  • Body Length:

    0.283 inch

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    USB 3.0 A

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Color:

    BLUE

  • Insulator Material:

    HIGH TEMPERATURE THERMOPLASTIC

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.4 mm

  • Plating Thickness:

    30 inch

  • Reference Standard:

    UL

  • Shell Material:

    STAINLESS STEEL

  • Terminal Length:

    0.173 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

GSB3116346FHR Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the GSB3116346FHR is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 2-2000 Hz.
  • Yes, the GSB3116346FHR is designed for outdoor use and meets the IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The GSB3116346FHR has an operating temperature range of -40°C to +125°C (-40°F to +257°F), making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.
  • While the datasheet specifies 14 AWG wire, the GSB3116346FHR can accommodate wire sizes ranging from 12 AWG to 16 AWG. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections and prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSB3116346FHR Overview

Use the download button to access the GSB3116346FHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GSB31, or try a keyword search, such as Telecom and Datacom Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
