GSD09001XSEU footprint, schematic symbol and 3D model by Amphenol

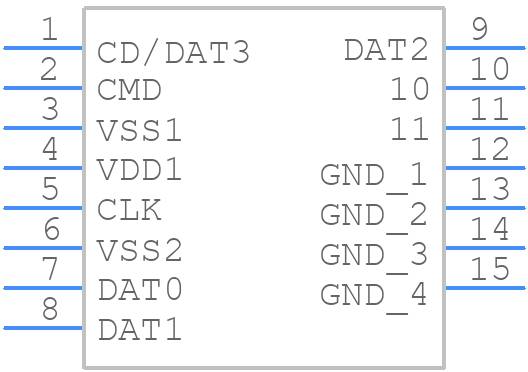

Symbol

click to zoom

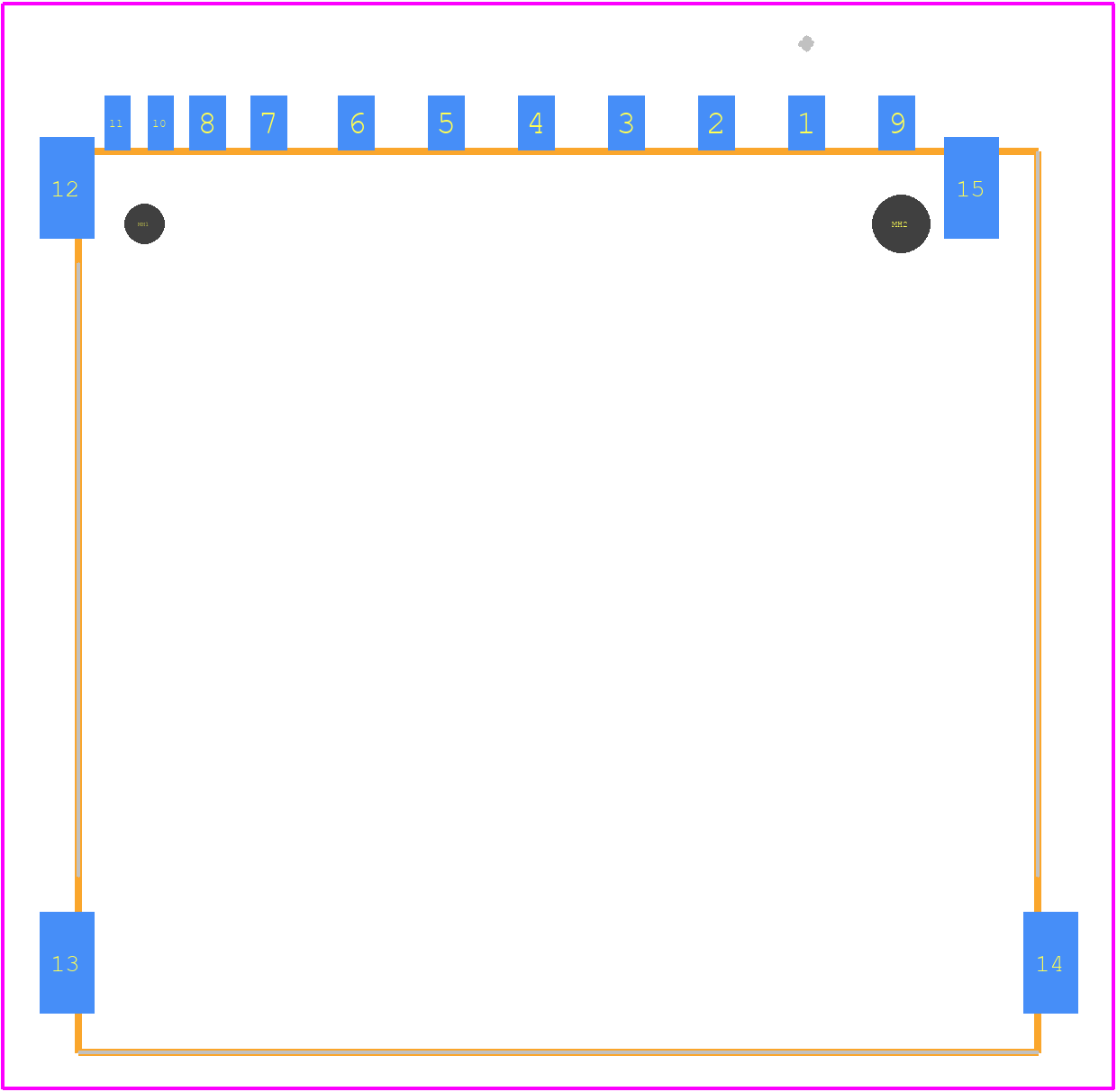

PCB Footprints

GSD09001XSEU - Amphenol PCB footprint - Other - Other - GSD09001XSEU-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GSD09001XSEU
Part Number GSD09001XSEU
Manufacturer Amphenol
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - GSD09001XSEU-5
Released Date Aug 6, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

GSD09001XSEU Details

Manufacturer Part Number:
GSD09001XSEU
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Amphenol Corporation
Connector Type:
PCB CONNECTOR
Contact Finish Mating:
GOLD (8)
Contact Finish Termination:
TIN (160)
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE

Trust Checks

Expert Contribution

System Verified

Community Approved

GSD09001XSEU Overview

Use the download button to access the GSD09001XSEU schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GSD09, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
