GSF1.1001.31 footprint, schematic symbol and 3D model by SCHURTER

Symbol

click to zoom

PCB Footprints

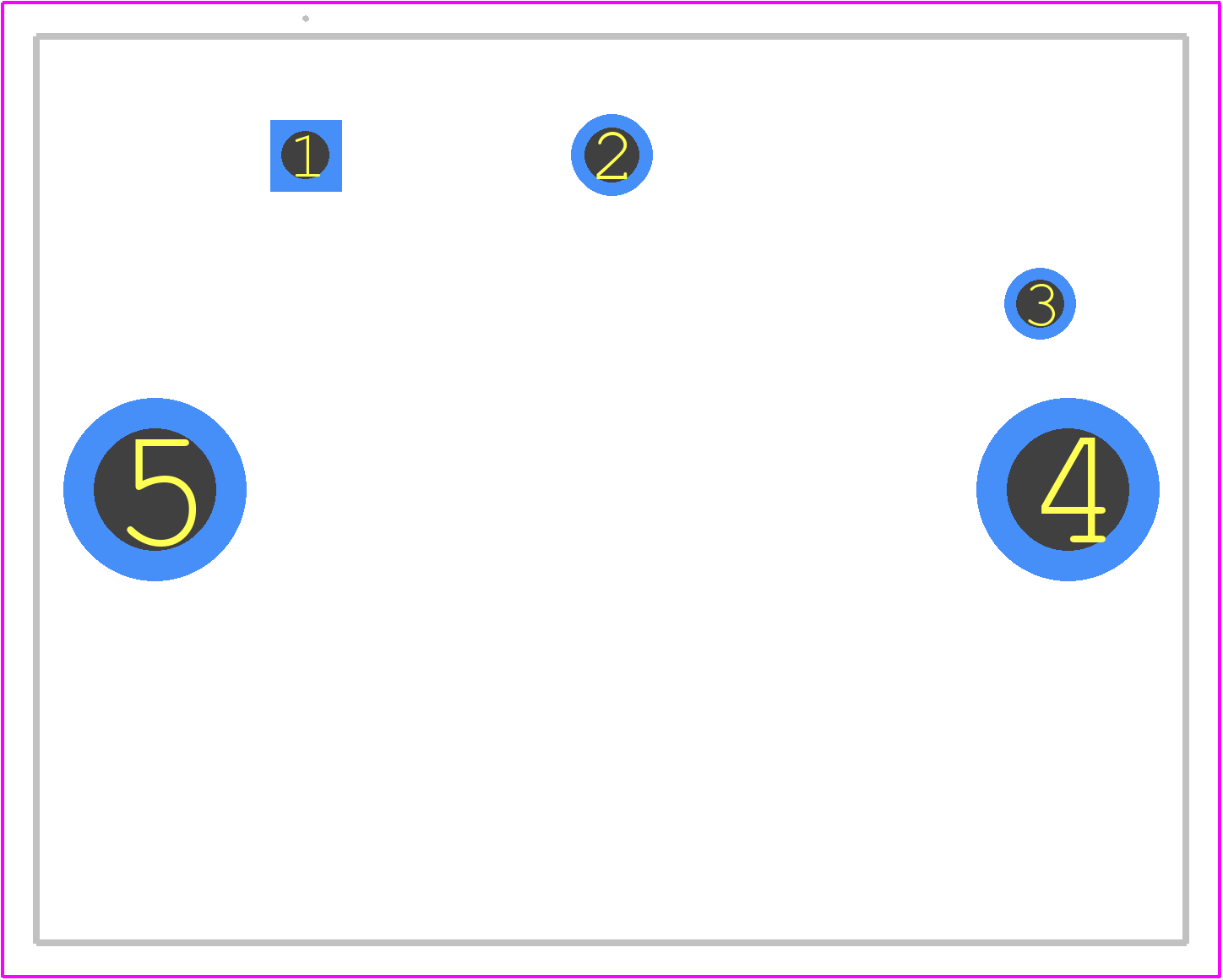

GSF1.1001.31 - SCHURTER PCB footprint - Other - Other - GSF1.1001.31-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GSF1.1001.31
Part Number GSF1.1001.31
Manufacturer SCHURTER
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - GSF1.1001.31-1
Released Date Feb 26, 2025
Last Modified Date Sep 24, 2025 2:50 PM UTC
Pinout / Pin List Click Here (Member Only)

GSF1.1001.31 Details

Manufacturer Part Number:
GSF1.1001.31
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
8 Weeks, 5 Days
Manufacturer:
Schurter Electronic Components
YTEOL:
8
Additional Feature:
STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE
Connector Type:
MAINS POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Coupling Type:
SNAP
DIN Conformance:
NO
IEC Conformance:
YES
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mains Connector Rating:
10A, 250VAC
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mounting Type:
PANEL
Option:
GENERAL PURPOSE
Termination Type:
SCREW
Total Number of Contacts:
3

GSF1.1001.31 Frequently Asked Questions (FAQs)

Schurter recommends a PCB layout with a minimum of 2mm clearance around the fuse body and a maximum of 1.5mm hole diameter for the fuse pins. Additionally, a thermal relief pattern is recommended to ensure good solderability.
While the GSF1.1001.31 has a rated operating temperature of -40°C to 125°C, it's not recommended for use in high-temperature applications above 100°C due to potential degradation of the fuse's characteristics.
Schurter recommends using a soldering iron with a temperature of 250°C to 270°C and a soldering time of 2-3 seconds maximum. The soldering process should be done in a well-ventilated area, and the fuse should not be subjected to excessive mechanical stress.
Yes, the GSF1.1001.31 is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature to ensure reliable operation.
While the GSF1.1001.31 is designed to handle inrush currents, it's essential to consider the specific application requirements and ensure the fuse is properly sized to handle the expected inrush current. Consult with Schurter's application engineers for guidance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

GSF1.1001.31 Overview

Use the download button to access the GSF1.1001.31 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like GSF1., or try a keyword search, such as Mains Power Connectors
