GSF1.2201.61 - SCHURTER

Description: CAD-Model shows variation protection class I, screw-mounting on PCB, fuse holder 2-pole, without fuse, without insulation cover, Terminal straight 4.8x0.8 mm

Download GSF1.2201.61 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSF1.2201.61 - SCHURTER - PCB symbol
click to zoom

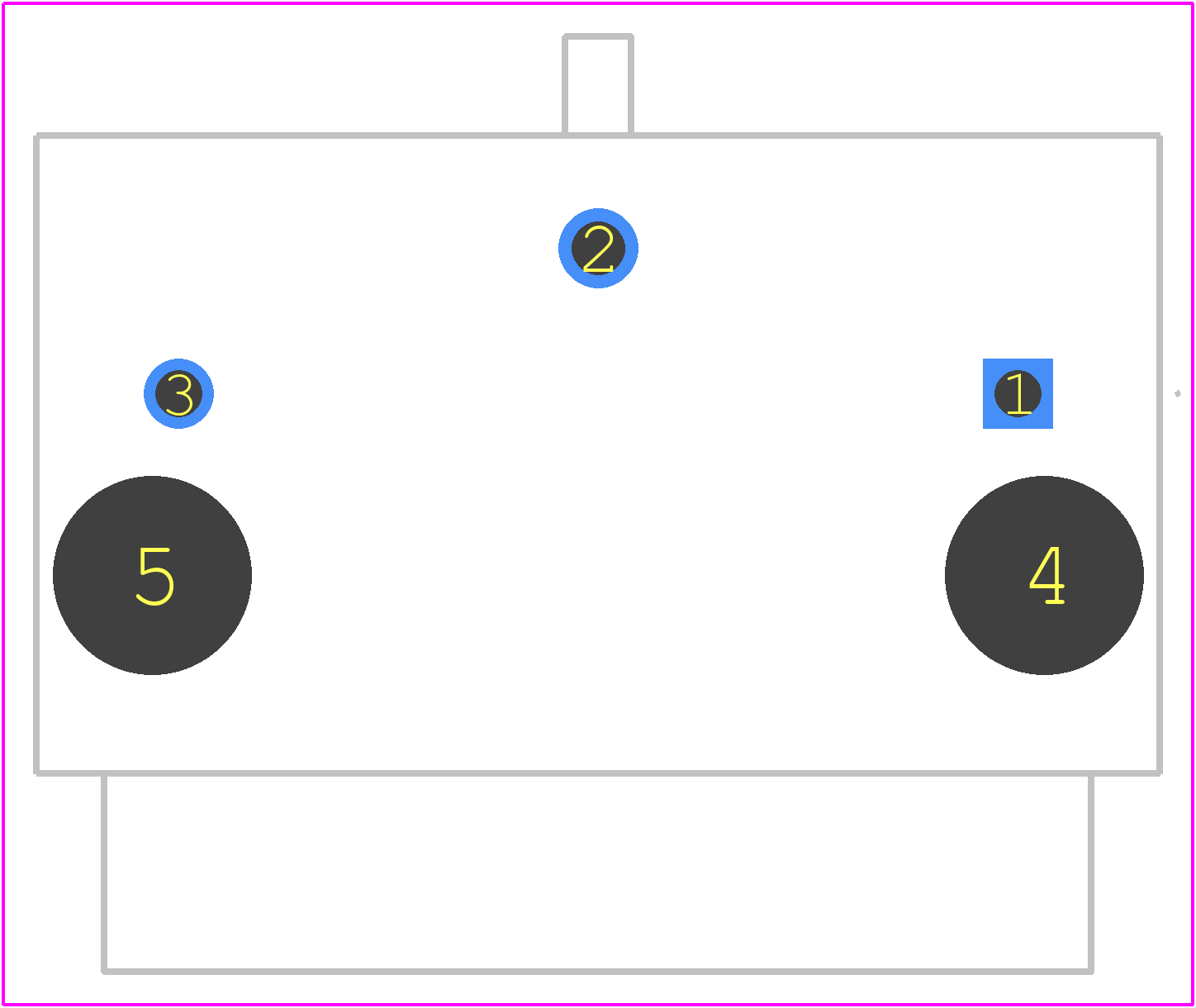

PCB Footprints
GSF1.2201.61 - SCHURTER PCB footprint - Other - Other - GSF1.2201.61-2
click to zoom
3D Models
GSF1.2201.61 - SCHURTER - 3D model - Other - GSF1.2201.61-2
click to zoom

GSF1.2201.61 Details

  • Manufacturer Part Number:

    GSF1.2201.61

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

GSF1.2201.61 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • Yes, the GSF1.2201.61 is designed to operate up to 10 GHz, making it suitable for high-frequency applications such as RF and microwave systems.
  • The GSF1.2201.61 is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult the datasheet and application notes for more information.
  • The GSF1.2201.61 has a protection rating of IP40, which means it is protected against solid objects larger than 1 mm, but not against water or moisture. It may not be suitable for outdoor or harsh environmental applications without additional protection.
  • The GSF1.2201.61 is designed to withstand vibrations up to 10 g, but it's recommended to consult the application notes and perform additional testing to ensure reliability in high-vibration environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSF1.2201.61 Overview

Use the download button to access the GSF1.2201.61 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GSF1., or try a keyword search, such as Mains Power Connectors
