GSP1.8101.1 - SCHURTER

Description: CAD-Model shows variation 4 through hole for cylindrical screw, without insulation cover, protection class I, terminal 4.8 mm

Download GSP1.8101.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSP1.8101.1 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

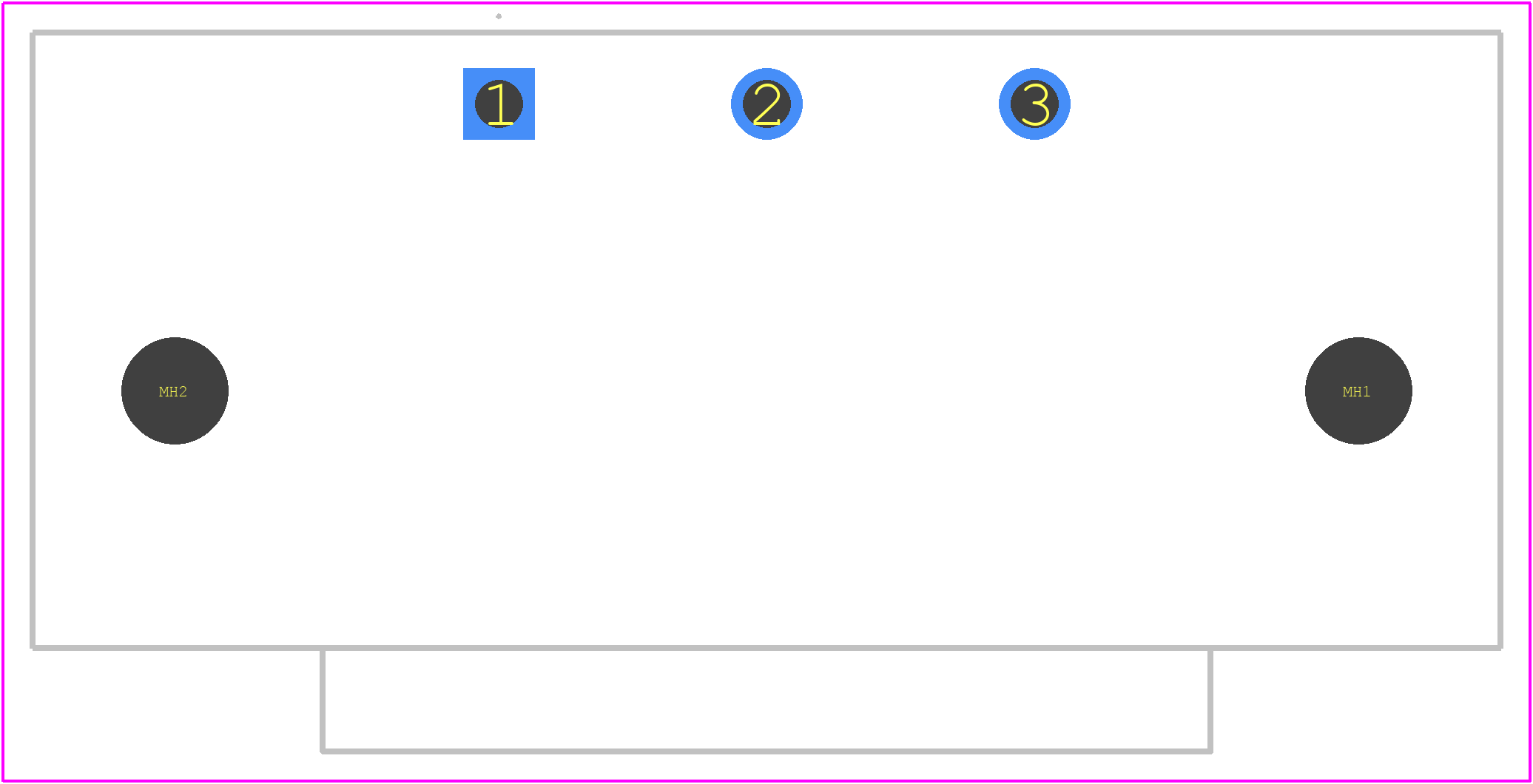

GSP1.8101.1 - SCHURTER PCB footprint - Other - Other - GSP1.8101.1-2
click to zoom
3D Models
GSP1.8101.1 - SCHURTER - 3D model - Other - GSP1.8101.1-2
click to zoom

GSP1.8101.1 Details

  • Manufacturer Part Number:

    GSP1.8101.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498; CSA C22.2; VDE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

GSP1.8101.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • Yes, the GSP1.8101.1 is designed to withstand vibrations and shocks, making it suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • The GSP1.8101.1 is designed for use with standard 5x20mm fuses, and is suitable for currents up to 10A. For higher currents, a different fuse holder may be required.
  • The GSP1.8101.1 is rated for operation up to 85°C, but it's recommended to derate the current rating at higher temperatures. Consult the datasheet and manufacturer's application notes for more information.
  • Yes, the GSP1.8101.1 is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those in the European Union.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSP1.8101.1 Overview

Use the download button to access the GSP1.8101.1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GSP1., or try a keyword search, such as Mains Power Connectors
