Part Image

GSP1.8701.1 - SCHURTER

Description: CAD-Model shows variation 4 through hole for cylindrical screw, without insulation cover, protection class I, terminal 4.8 mm

Download GSP1.8701.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSP1.8701.1 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

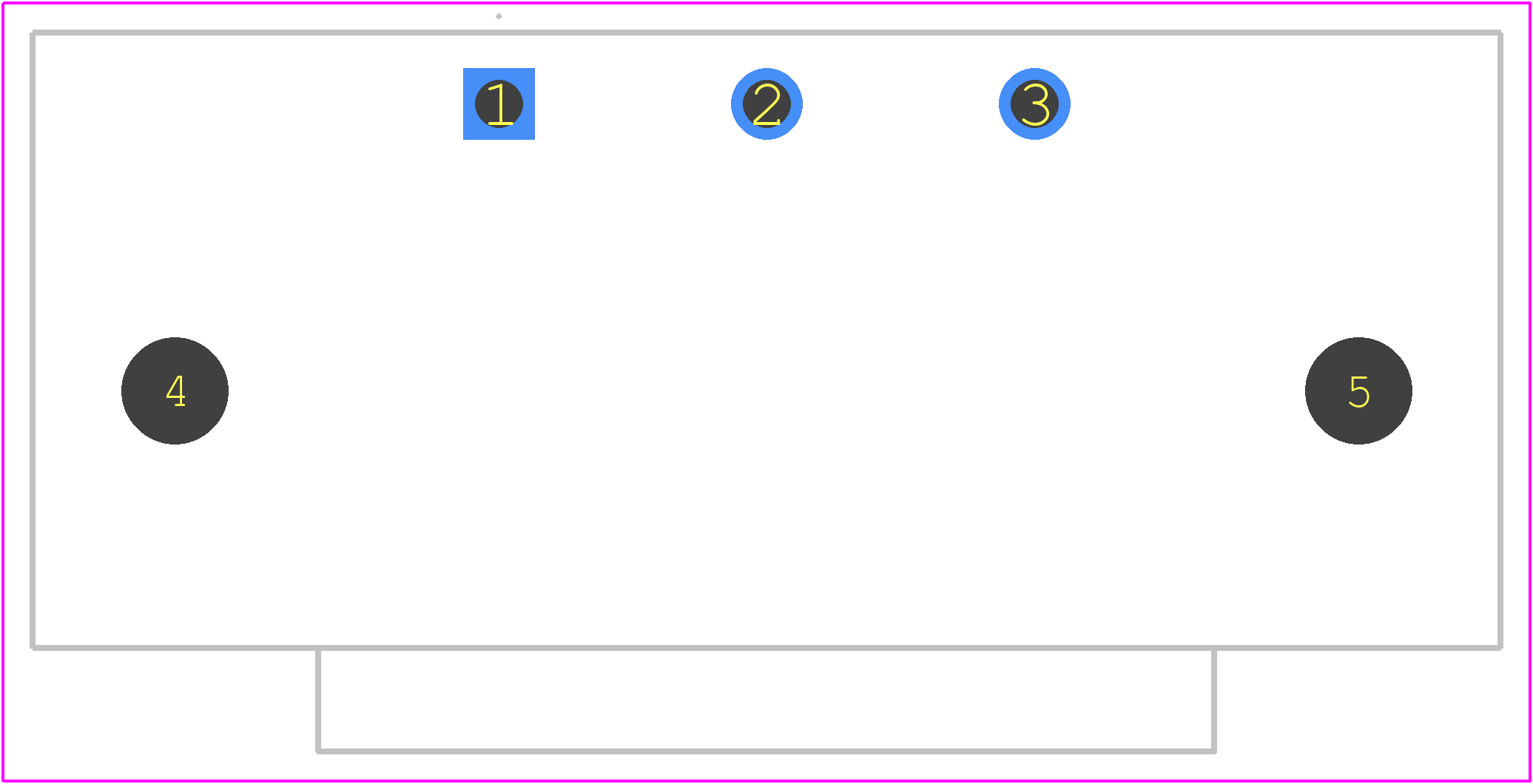

GSP1.8701.1 - SCHURTER PCB footprint - Other - Other - GSP1.8701.1-1
click to zoom
3D Models
GSP1.8701.1 - SCHURTER - 3D model - Other - GSP1.8701.1-1
click to zoom

GSP1.8701.1 Details

  • Manufacturer Part Number:

    GSP1.8701.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498; CSA C22.2; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

GSP1.8701.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • No, the GSP1.8701.1 is specifically designed for use with 5x20mm fuses, such as the Schurter UMT 250 or equivalent. Using other types of fuses may not ensure proper operation or safety.
  • While the GSP1.8701.1 is a robust component, it is not specifically designed for high-vibration applications. For such applications, Schurter recommends using their vibration-resistant fuse holders, such as the GSV series.
  • The GSP1.8701.1 has a rating of IP40, which means it provides protection against solid objects larger than 1mm, but not against water or moisture. For outdoor or humid environments, Schurter recommends using their fuse holders with higher IP ratings, such as the GSW series.
  • Schurter provides a recommended PCB layout and spacing guide in their application notes, which includes a minimum spacing of 2mm between the fuse holder and other components to ensure safe and reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSP1.8701.1 Overview

Use the download button to access the GSP1.8701.1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GSP1., or try a keyword search, such as Mains Power Connectors
