GSP1.9101.1 - SCHURTER

Description: CAD-Model shows variation 4 through hole for cylindrical screw, without insulation cover, protection class I, terminal 4.8 mm

Download GSP1.9101.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSP1.9101.1 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

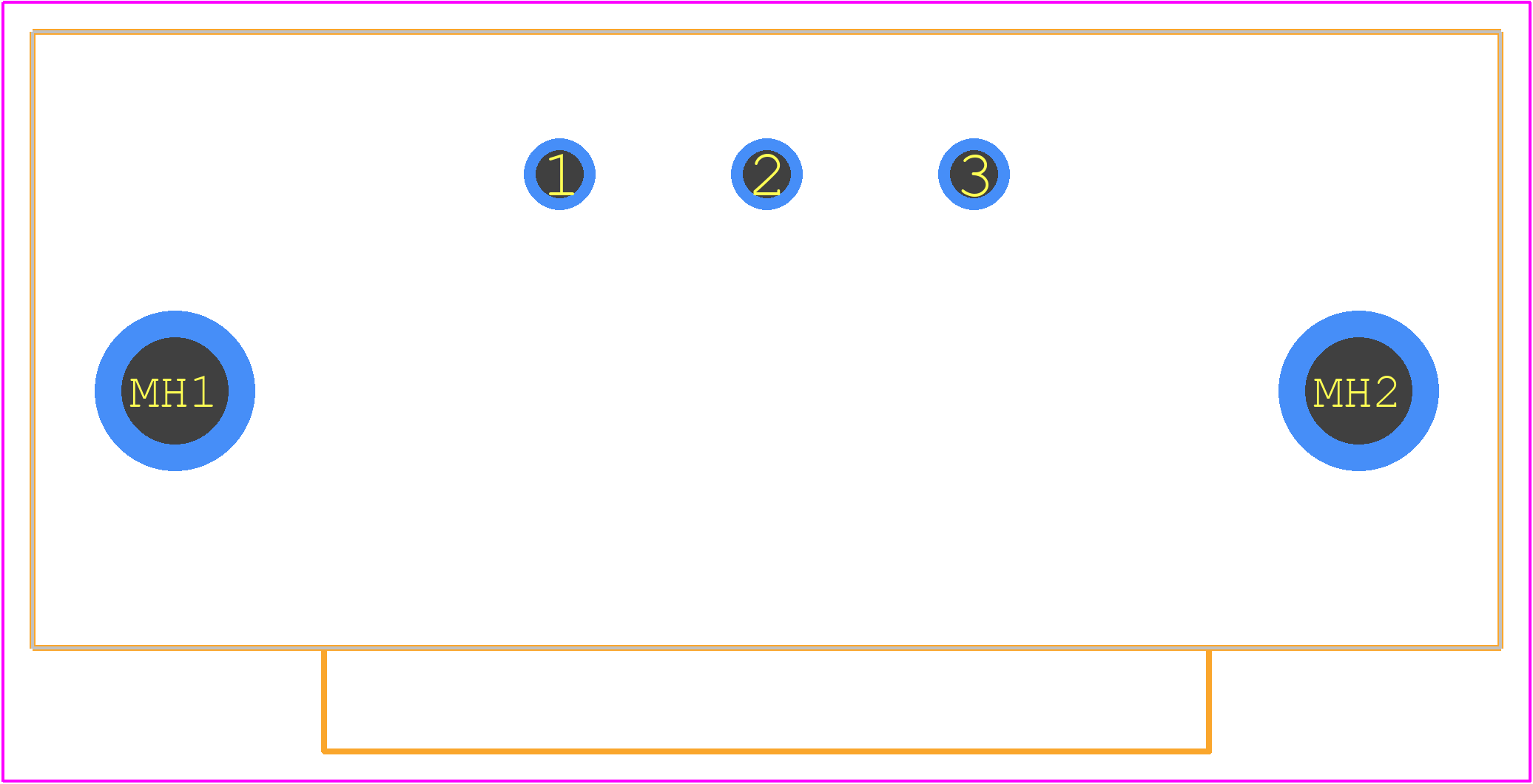

GSP1.9101.1 - SCHURTER PCB footprint - Other - Other - GSP1.9103.1-1_FFW
click to zoom
3D Models
GSP1.9101.1 - SCHURTER - 3D model - Other - GSP1.9103.1-1_FFW
click to zoom

GSP1.9101.1 Details

  • Manufacturer Part Number:

    GSP1.9101.1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498; CSA C22.2; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

GSP1.9101.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • No, the GSP1.9101.1 is specifically designed for use with 5x20mm fuses. Using other types of fuses may not provide proper protection and may void the warranty.
  • Yes, the GSP1.9101.1 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to consult with Schurter's application engineers for specific vibration requirements.
  • The GSP1.9101.1 has a rating of IP40, which means it provides protection against solid objects larger than 1mm and is not suitable for outdoor or harsh environments. For outdoor or harsh environments, consider using a fuse holder with a higher IP rating.
  • The maximum operating temperature of the GSP1.9101.1 is 125°C, as specified in the datasheet. Operating the fuse holder above this temperature may affect its performance and lifespan.
