GSP1.9103.1 - SCHURTER

Description: CAD-Model shows variation 4 through hole for cylindrical screw, without insulation cover, protection class I, termianl 6.3 mm

Download GSP1.9103.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSP1.9103.1 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

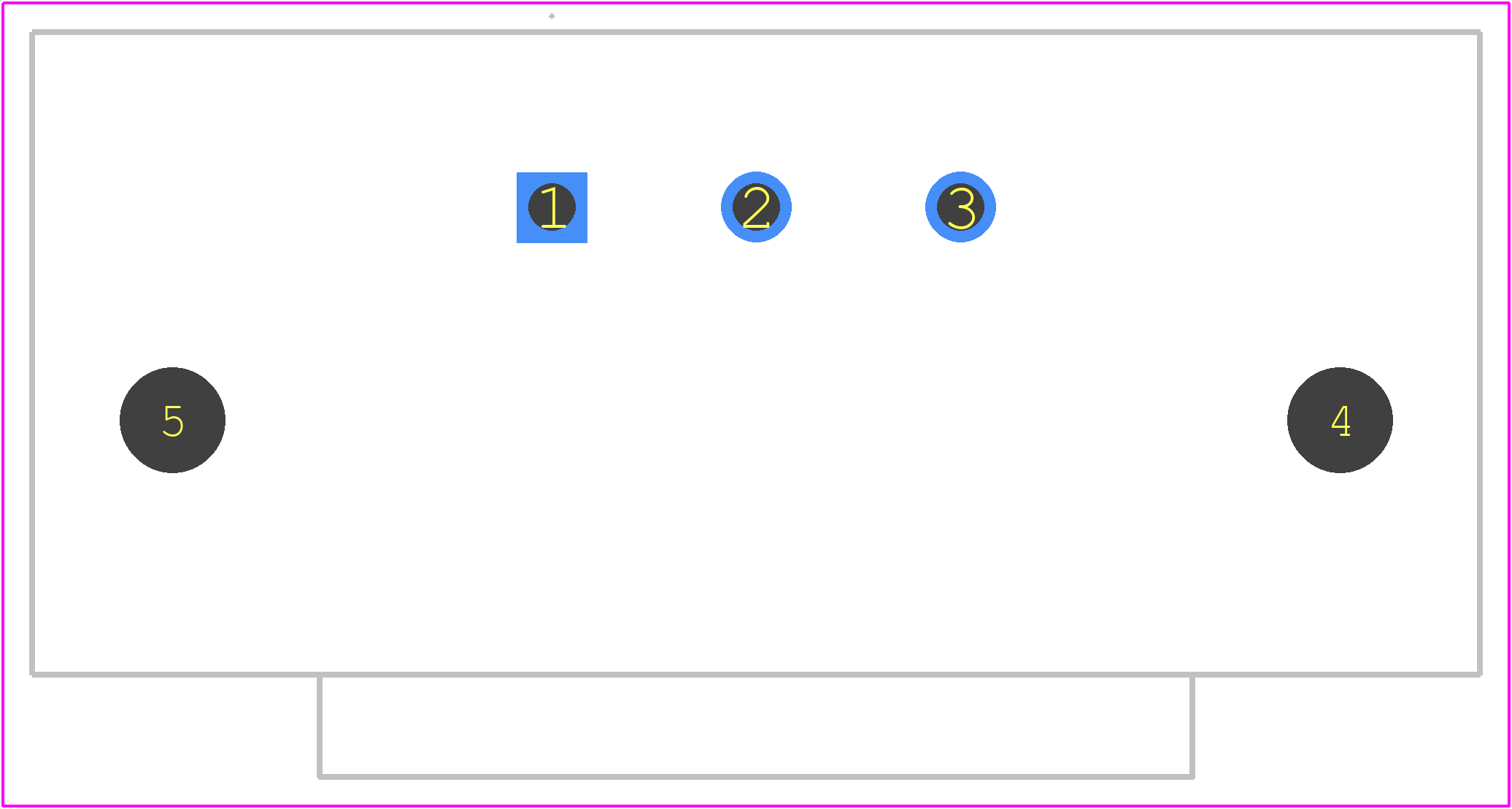

GSP1.9103.1 - SCHURTER PCB footprint - Other - Other - GSP1.9103.1-3
click to zoom
3D Models
GSP1.9103.1 - SCHURTER - 3D model - Other - GSP1.9103.1-3
click to zoom

GSP1.9103.1 Details

  • Manufacturer Part Number:

    GSP1.9103.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498; CSA C22.2; VDE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

GSP1.9103.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of GSP1.9103.1 is 0.5 Nm to 1.5 Nm, as specified by Schurter.
  • Yes, the GSP1.9103.1 is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow the mounting instructions and ensure proper securing of the fuse holder.
  • While the GSP1.9103.1 is designed for use with specific fuse types, it may be possible to use other fuse types with similar dimensions and characteristics. However, it's recommended to consult with Schurter or a qualified engineer to ensure compatibility and safety.
  • To ensure the fuse holder is properly secured to the PCB, follow the recommended mounting instructions, use the correct screws and torque, and consider using additional securing methods such as adhesive or clips, if necessary.
  • The operating temperature range for the GSP1.9103.1 is -40°C to 125°C, as specified by Schurter.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSP1.9103.1 Overview

Use the download button to access the GSP1.9103.1 schematic symbol, PCB footprint, and 3D model.
