GSP1.9113.1 - SCHURTER

Description: CAD-Model shows variation 4 through hole for cylindrical screw, without insulation cover, protection class I, termianl 6.3 mm

Download GSP1.9113.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

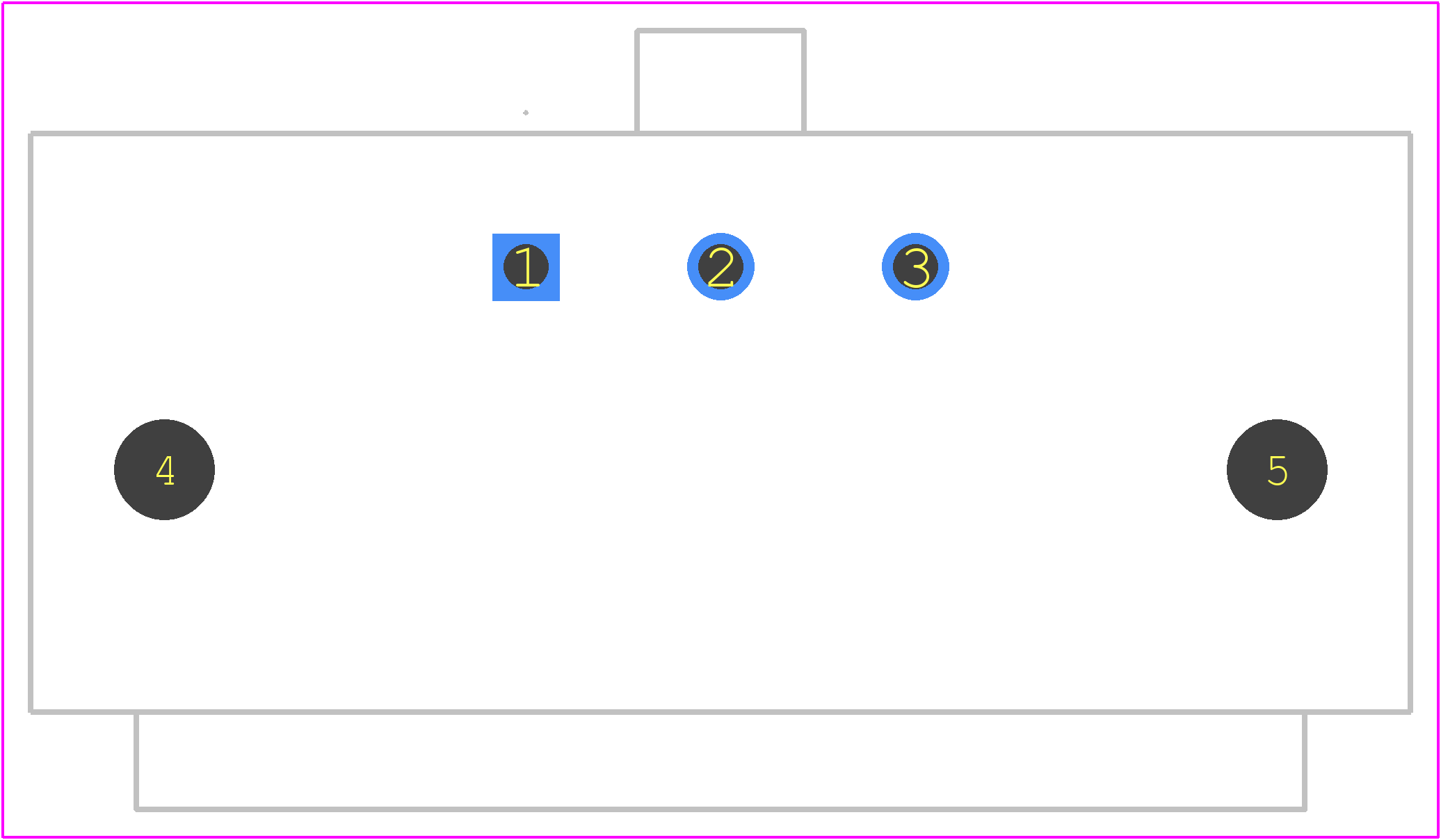

GSP1.9113.1 - SCHURTER PCB footprint - Other - Other - GSP1.9113.1-1
click to zoom
3D Models
GSP1.9113.1 - SCHURTER  - 3D model - Other - GSP1.9113.1-1
click to zoom

GSP1.9113.1 Details

  • Manufacturer Part Number:

    GSP1.9113.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498; CSA C22.2; VDE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

GSP1.9113.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • No, the GSP1.9113.1 is designed for use with fuse links up to 250V AC/DC, and using it with higher voltage ratings may compromise safety and reliability.
  • The GSP1.9113.1 is designed for use with 5x20mm fuse links, and may not be compatible with other sizes or types of fuse links.
  • The operating temperature range for the GSP1.9113.1 is -40°C to 85°C, as specified in the datasheet.
  • The GSP1.9113.1 is designed to withstand moderate vibration, but may not be suitable for use in extremely high-vibration environments. Consult the manufacturer's application notes for more information.
