GSP2.8201.13 - SCHURTER

Description: CAD-Model shows variation snap-in mounting on PCB, pin spacing 9.05/9.7 mm, protection class I, protective conductor terminal 4.8x0.8 mm 90° to connector axis.

Download GSP2.8201.13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

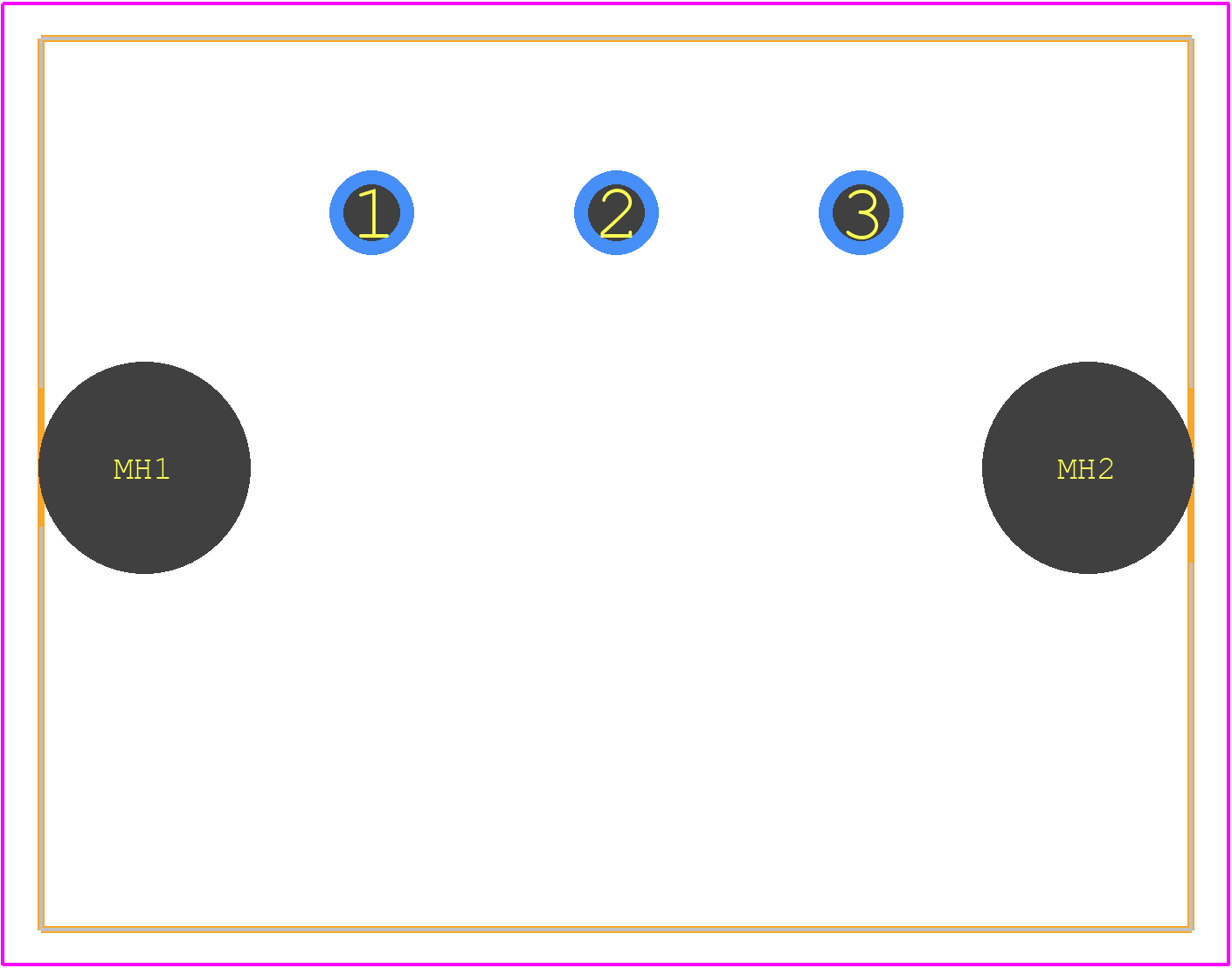

GSP2.8201.13 - SCHURTER PCB footprint - Other - Other - GSP2.8201.13-2
click to zoom
3D Models
GSP2.8201.13 - SCHURTER  - 3D model - Other - GSP2.8201.13-2
click to zoom

GSP2.8201.13 Details

  • Manufacturer Part Number:

    GSP2.8201.13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 320/C14, BRASS, NICKEL PLATED ALSO AVAILABLE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    TIN NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A, 250V

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

GSP2.8201.13 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • Yes, the GSP2.8201.13 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The GSP2.8201.13 is designed for use with fuses up to 10A, but it's recommended to derate the fuse current to 8A for optimal performance and to prevent overheating.
  • The GSP2.8201.13 has a protection rating of IP40, which means it's protected against solid objects larger than 1mm, but not against water or moisture. It's not recommended for use in humid or wet environments.
  • The GSP2.8201.13 is designed to operate within a temperature range of -40°C to 85°C, making it suitable for use in a wide range of applications.
