GSP2.9203.13 - SCHURTER

Description: CAD-Model shows variation snap-in mounting on PCB, pin spacing 7 / 7.3 mm, protection class I, protective conductor terminal 4.8x0.8 mm in appl. connector axis.

Download GSP2.9203.13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSP2.9203.13 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

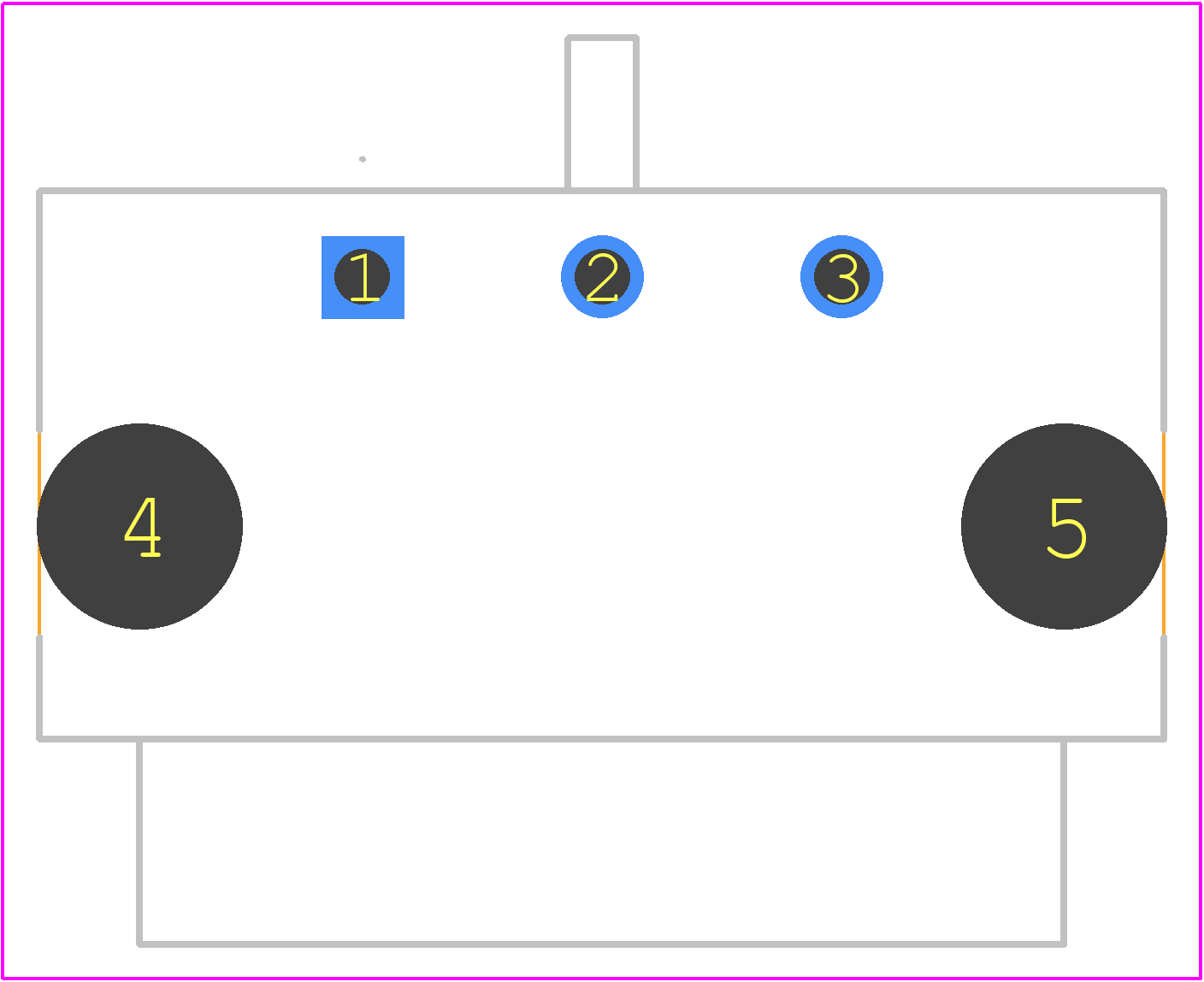

GSP2.9203.13 - SCHURTER PCB footprint - Other - Other - GSP2.9203.13-1
click to zoom
3D Models
GSP2.9203.13 - SCHURTER - 3D model - Other - GSP2.9203.13-1
click to zoom

GSP2.9203.13 Details

  • Manufacturer Part Number:

    GSP2.9203.13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14/C18; UL 94V-0; UL 498; CSA C22.2; VDE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    TIN NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

GSP2.9203.13 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • Yes, the GSP2.9203.13 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The GSP2.9203.13 is rated for operation up to 125°C, making it suitable for use in high-temperature applications. However, it's essential to ensure that the fuse holder is properly derated for high-temperature use.
  • No, the GSP2.9203.13 is specifically designed for use with 5x20mm fuses. Using a different size fuse may compromise the safety and performance of the fuse holder.
  • Yes, the GSP2.9203.13 is compliant with IEC 60127-1 and UL 248-14 safety standards for fuse holders.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSP2.9203.13 Overview

Use the download button to access the GSP2.9203.13 schematic symbol, PCB footprint, and 3D model.
