GSP4.0107.10 - SCHURTER

Description: CAD-Model shows variant protection class I, protective conductor with quick connect terminal 6.3x0.8mm in appl. connector axis, mounted insulation cover

Download GSP4.0107.10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GSP4.0107.10 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

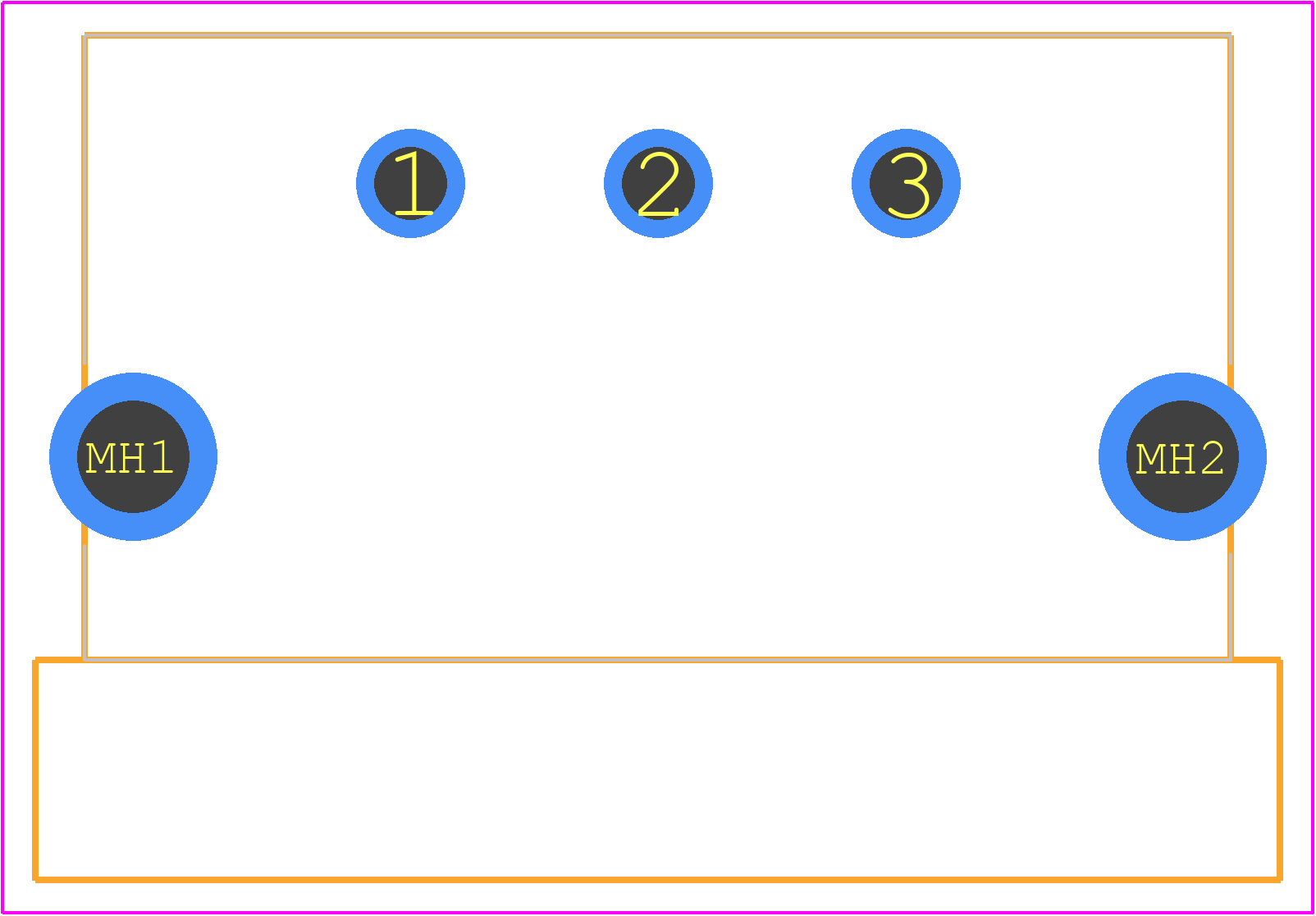

GSP4.0107.10 - SCHURTER PCB footprint - Other - Other - GSP4.0107.10-1
click to zoom
3D Models
GSP4.0107.10 - SCHURTER - 3D model - Other - GSP4.0107.10-1
click to zoom

GSP4.0107.10 Details

  • Manufacturer Part Number:

    GSP4.0107.10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    STANDARD : CSA C22.2, IEC 60320, UL 498

  • Body Breadth:

    0.811 inch

  • Body Depth:

    2.657 inch

  • Body Length:

    1.114 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • Insulator Material:

    POLYAMIDE6

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Reference Standard:

    CSA; UL

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

GSP4.0107.10 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • No, the GSP4.0107.10 is rated for a maximum voltage of 32V DC, so it's not suitable for high-voltage applications. You should consider a different fuse holder for high-voltage applications.
  • Yes, the GSP4.0107.10 meets the requirements for automotive applications, including resistance to vibration, shock, and temperature fluctuations. However, you should verify the specific requirements of your application with Schurter or a qualified engineer.
  • No, the GSP4.0107.10 is designed for use with 5x20mm glass fuses. Using ceramic fuses may not provide a reliable connection and could compromise the safety and performance of your system.
  • The operating temperature range of the GSP4.0107.10 is -40°C to 125°C, making it suitable for a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GSP4.0107.10 Overview

Use the download button to access the GSP4.0107.10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GSP4., or try a keyword search, such as Mains Power Connectors
