GT03-111-069-B footprint, schematic symbol and 3D model by ICE Components

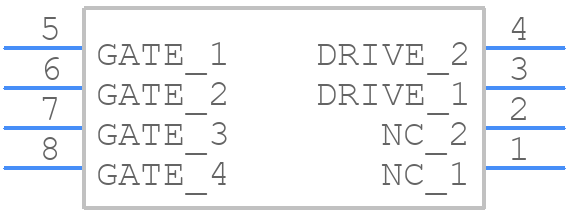

Symbol

click to zoom

PCB Footprints

GT03-111-069-B - ICE Components PCB footprint - Other - Other - GT03-111-069-B-2

click to zoom

3D Models

GT03-111-069-B - ICE Components - 3D model - Other - GT03-111-069-B-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GT03-111-069-B
Part Number GT03-111-069-B
Manufacturer ICE Components
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - GT03-111-069-B-2
Released Date Sep 15, 2019
Last Modified Date Feb 25, 2025 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

GT03-111-069-B Details

Manufacturer Part Number:
GT03-111-069-B
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
ICE Components Inc
Additional Feature:
BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO
Application:
GATE DRIVE
ET Product-Min:
69 V-us
Height:
6.8 mm
Isolation Voltage:
3750 V
Length:
10.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Operating Temperature-Max:
130 °C
Operating Temperature-Min:
-40 °C
Packing Method:
REEL
Primary Inductance:
2000 µH
Surface Mount:
YES
Transformer Type:
PULSE TRANSFORMER
Turns Ratio (Np:Ns):
1:1:1
Width:
16 mm

GT03-111-069-B Frequently Asked Questions (FAQs)

Store in a dry, cool place, away from direct sunlight, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
Yes, but ensure proper mounting and secure the component to prevent mechanical stress. Consult ICE Components Inc for specific vibration testing data.
Use standard ESD precautions, such as wrist straps, mats, and bags, to prevent damage. Ground yourself before handling the component.
Follow the recommended soldering profile: peak temperature 240°C (464°F), dwell time 3-5 seconds, and preheat to 150°C (302°F) for 1-2 minutes.
No, GT03-111-069-B is not designed for use in humid or wet environments. Moisture can cause damage or corrosion. Use in dry environments only.

Trust Checks

Expert Contribution

System Verified

Community Approved

GT03-111-069-B Overview

Use the download button to access the GT03-111-069-B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GT03-, or try a keyword search, such as Pulse/Datacom Transformers
