GT03-111-110-A footprint, schematic symbol and 3D model by ICE Components

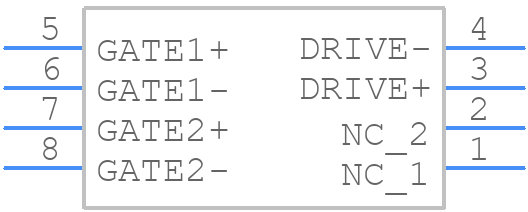

Symbol

click to zoom

PCB Footprints

GT03-111-110-A - ICE Components PCB footprint - Other - Other - GT03-111-110-A-2

click to zoom

3D Models

GT03-111-110-A - ICE Components - 3D model - Other - GT03-111-110-A-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for GT03-111-110-A
Part Number GT03-111-110-A
Manufacturer ICE Components
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - GT03-111-110-A-2
Released Date Oct 7, 2024
Last Modified Date Jul 21, 2025 6:42 AM UTC
Pinout / Pin List Click Here (Member Only)

GT03-111-110-A Details

Manufacturer Part Number:
GT03-111-110-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
ICE Components Inc
Additional Feature:
BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO
Application:
GATE DRIVE
ET Product-Min:
110 V-us
Height:
6.8 mm
Isolation Voltage:
1500 V
Length:
10.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Operating Temperature-Max:
130 °C
Operating Temperature-Min:
-40 °C
Packing Method:
REEL
Primary Inductance:
5100 µH
Surface Mount:
YES
Transformer Type:
PULSE TRANSFORMER
Turns Ratio (Np:Ns):
1:1:1
Width:
16 mm

GT03-111-110-A Frequently Asked Questions (FAQs)

Store in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and relative humidity below 80%.
Handle the component by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
Use a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 3-5 seconds per pin.
Yes, but ensure the component is properly secured to the PCB and consider using a vibration-dampening material to minimize stress on the component.
Use a soft-bristled brush and a mild solvent, such as isopropyl alcohol, to remove flux residue. Avoid using harsh chemicals or abrasive materials.

Trust Checks

Community Provided

System Verified

Community Approved

GT03-111-110-A Overview

Use the download button to access the GT03-111-110-A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GT03-, or try a keyword search, such as Pulse/Datacom Transformers
