GT17V-10DP-DS(70) - Hirose

Description: 10 Position Automotive LAN Connector Plug Connector Solder Through Hole, Right Angle

Download GT17V-10DP-DS(70) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

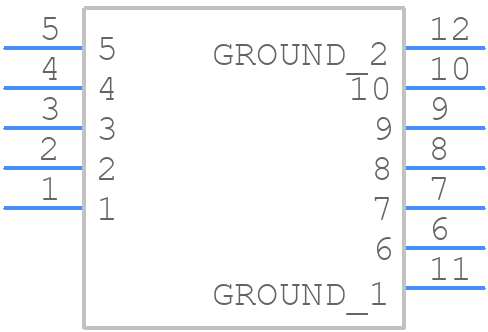

GT17V-10DP-DS(70) - Hirose - PCB symbol
click to zoom
PCB Footprints

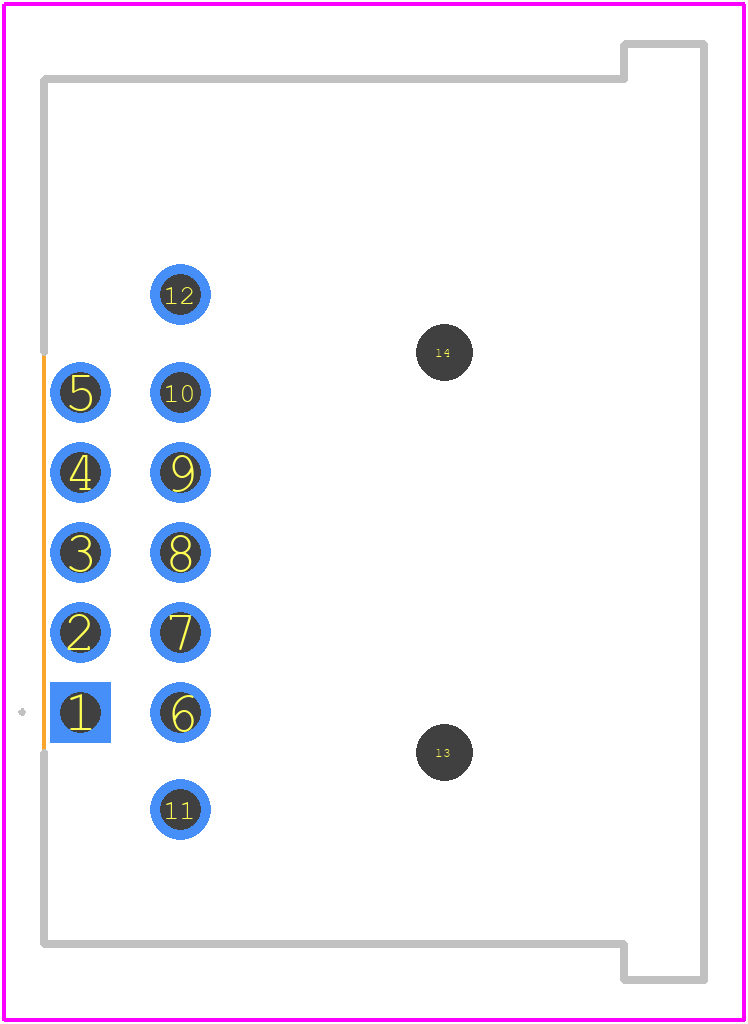

GT17V-10DP-DS(70) - Hirose PCB footprint - Other - Other - GT17V-10DP-DS(70)-3
click to zoom
3D Models
GT17V-10DP-DS(70) - Hirose - 3D model - Other - GT17V-10DP-DS(70)-3
click to zoom

GT17V-10DP-DS(70) Details

  • Manufacturer Part Number:

    GT17V-10DP-DS(70)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Body Breadth:

    0.618 inch

  • Body Depth:

    0.65 inch

  • Body Length:

    0.921 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

GT17V-10DP-DS(70) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to follow the recommended mating sequence, clean the contacts before mating, and apply a suitable contact lubricant to reduce wear and tear.
  • The maximum operating temperature for the GT17V-10DP-DS(70) connector is 125°C, as specified in the datasheet. However, it's essential to consider the temperature rating of the entire system and ensure that the connector is used within its recommended operating range.
  • Yes, the GT17V-10DP-DS(70) connector is designed to withstand high-vibration environments. However, it's crucial to follow the recommended mounting and fastening procedures to ensure the connector remains securely in place.
  • The typical lead time for ordering GT17V-10DP-DS(70) connectors can vary depending on the supplier, quantity, and location. It's best to check with authorized distributors or Hirose Electric Co Ltd directly for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GT17V-10DP-DS(70) Overview

Use the download button to access the GT17V-10DP-DS(70) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GT17V, or try a keyword search, such as Combination Line Connectors
