GT17V-6DP-DS(70) - Hirose

Description: Hirose GT17V Series 6 Way Right Angle PCB Header, Solder Termination

Download GT17V-6DP-DS(70) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

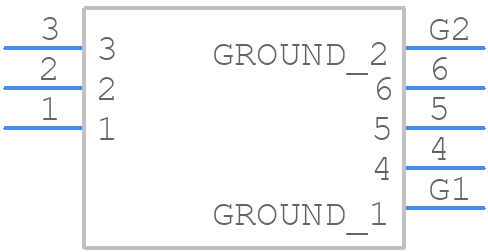

GT17V-6DP-DS(70) - Hirose - PCB symbol
click to zoom
PCB Footprints

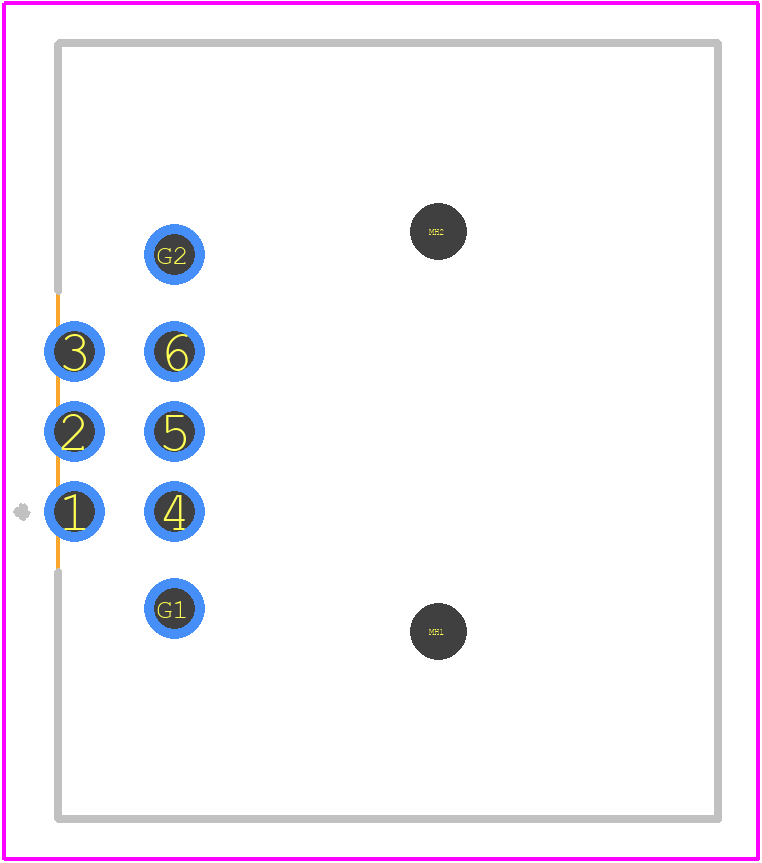

GT17V-6DP-DS(70) - Hirose PCB footprint - Other - Other - GT17V-6DP-DS(70)-1
click to zoom
3D Models
GT17V-6DP-DS(70) - Hirose - 3D model - Other - GT17V-6DP-DS(70)-1
click to zoom

GT17V-6DP-DS(70) Details

  • Manufacturer Part Number:

    GT17V-6DP-DS(70)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Body Breadth:

    0.618 inch

  • Body Depth:

    0.65 inch

  • Body Length:

    0.764 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

GT17V-6DP-DS(70) Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for the most up-to-date information.
  • Yes, the GT17V-6DP-DS(70) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The GT17V-6DP-DS(70) is a unique connector with a specific mating interface. While it may be compatible with other Hirose connectors, it's recommended to consult the datasheet and contact Hirose Electric Co Ltd to ensure compatibility before using it with other connectors.
  • The operating temperature range for the GT17V-6DP-DS(70) is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • The GT17V-6DP-DS(70) is designed to be used in a variety of environments, including outdoor and high-humidity areas. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
