- Part Number GT5E-1P-DS(70)
- Manufacturer Hirose
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - GT5E-1P-DS(70)-2
- Released Date Mar 10, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GT5E-1P-DS(70) Details
-
Manufacturer Part Number:
GT5E-1P-DS(70)
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
42 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
RECTANGULAR CONNECTOR
GT5E-1P-DS(70) Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to insert the plug into the receptacle while aligning the keyways, and then rotate the plug clockwise until it clicks into place.
-
To ensure reliable connections, make sure to follow the recommended mating sequence, keep the connectors clean and free of debris, and apply a suitable contact lubricant to the contacts.
-
The maximum operating temperature range for the GT5E-1P-DS(70) connector is -40°C to 105°C, although this may vary depending on the specific application and environment.
-
Yes, the GT5E-1P-DS(70) connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
-
The GT5E-1P-DS(70) connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
Trust Checks
Expert Contribution
System Verified
Community Approved
GT5E-1P-DS(70) Overview

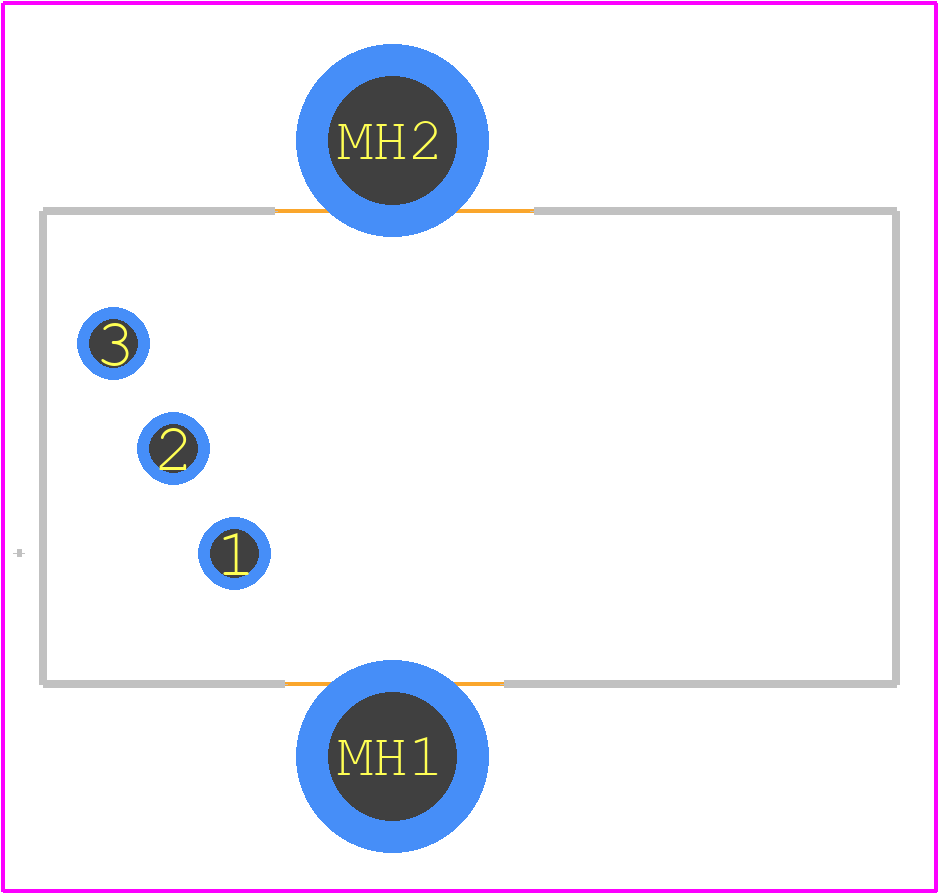

Use the download button to access the GT5E-1P-DS(70) schematic symbol, PCB footprint, and 3D model.
