GTL2002GM,125 - NXP

Description: IC TRNSLTR BIDIRECTIONAL 8XQFN

Download GTL2002GM,125 Model

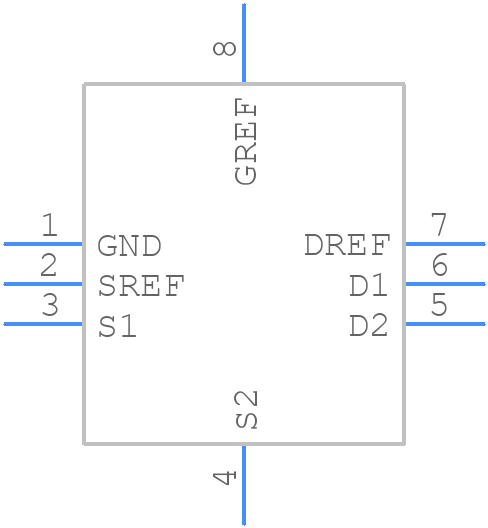

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
GTL2002GM,125 - NXP PCB footprint - Other - Other - GTL2002GM,125-1
click to zoom
3D Models
GTL2002GM,125 - NXP  - 3D model - Other - GTL2002GM,125-1
click to zoom

GTL2002GM,125 Details

  • Manufacturer Part Number:

    GTL2002GM,125

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    XQFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT902-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

GTL2002GM,125 Frequently Asked Questions (FAQs)

  • A good PCB layout for the GTL2002GM,125 involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing track impedance. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure signal integrity, use a controlled impedance PCB design, keep the signal tracks short and away from noise sources, and use a common mode filter or a ferrite bead to reduce EMI. Additionally, use a termination resistor at the receiver end to match the transmission line impedance.
  • The GTL2002GM,125 has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To handle ESD protection, use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device at the input and output pins of the GTL2002GM,125. Additionally, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
  • The recommended power sequencing for the GTL2002GM,125 is to power up the VCC pin first, followed by the VDD pin. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up or damage to the device.
