- Part Number GTL2010BS,118
- Manufacturer NXP
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - SOT616-1
- Released Date Dec 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
GTL2010BS,118 Details
-
Manufacturer Part Number:
GTL2010BS,118
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
HVQFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
SOT616-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
GTL2010BS,118 Frequently Asked Questions (FAQs)
-
A good PCB layout for the GTL2010BS,118 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper powering and decoupling, use a low-ESR capacitor (e.g., 100nF) close to the device's power pins, and a larger capacitor (e.g., 10uF) farther away. Also, use a 1-2 ohm resistor in series with the power supply to prevent voltage spikes.
-
The GTL2010BS,118 can operate up to 100 MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal integrity. It's recommended to consult with NXP Semiconductors or a qualified engineer for specific guidance.
-
To ensure ESD protection, use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device, such as the NXP PESD5V0V1BL, in conjunction with the GTL2010BS,118. Follow proper PCB layout and handling procedures to prevent ESD damage.
-
The GTL2010BS,118 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or a thermal pad, and avoid overheating the device. Consult the datasheet for thermal resistance and power dissipation guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
GTL2010BS,118 Overview

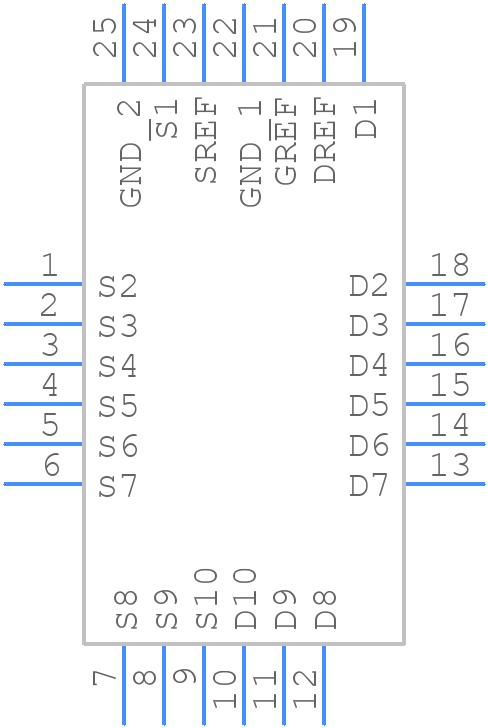

Use the download button to access the GTL2010BS,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GTL20,
or try a keyword search, such as Level Translators
