GW12LHP footprint, schematic symbol and 3D model by NKK Switches

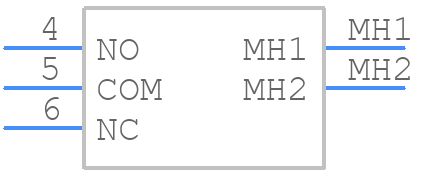

Symbol

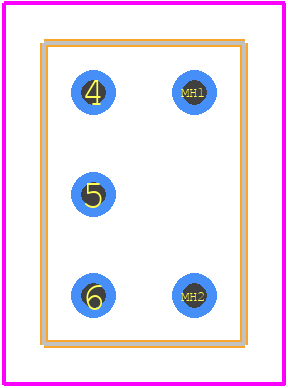

PCB Footprints

3D Models

GW12LHP Details

The recommended torque for mounting the GW12LHP switch is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in). Over-tightening can damage the switch.
Yes, the GW12LHP switch is designed to withstand high-vibration environments. However, it's recommended to consult with NKK Switches or a qualified engineer to ensure the switch meets the specific vibration requirements of your application.
The maximum operating temperature range for the GW12LHP switch is -20°C to 85°C (-4°F to 185°F). Operating outside this range may affect the switch's performance and reliability.
The GW12LHP switch has a rating of IP40, which means it provides protection against solid objects larger than 1 mm, but it's not designed for use in wet or humid environments. If your application requires a switch to operate in such conditions, consider using a switch with a higher IP rating or consult with NKK Switches for a custom solution.
The GW12LHP switch is not UL or CSA certified. If your application requires UL or CSA certification, you may need to use a different switch or consult with NKK Switches for a custom solution that meets the necessary certification requirements.

System Verified

Use the download button to access the GW12LHP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GW12L, or try a keyword search, such as Rocker Switches
