GWC1J470MCO1GS - Nichicon

Description: 47 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 4000 Hrs @ 135°C

Download GWC1J470MCO1GS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this GWC1J470MCO1GS model

Email notifications will be applied after download.

Send part feedback

Symbol

GWC1J470MCO1GS - Nichicon - PCB symbol

PCB Footprints

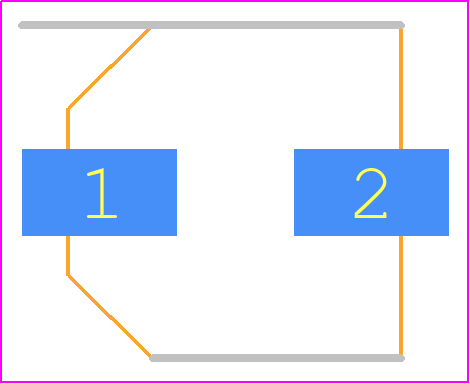

GWC1J470MCO1GS - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 8 x 10mm_2025

3D Models

GWC1J470MCO1GS - Nichicon - 3D model - Capacitor Al Electrolytic - 8 x 10mm_2025

Datasheet Download Datasheet
Stock & Prices Price & Stock for GWC1J470MCO1GS
Part Number GWC1J470MCO1GS
Manufacturer Nichicon
Pin Count 2
Part Category Capacitor Polarised
Package Category Capacitor Al Electrolytic
Footprint Name Capacitor Al Electrolytic - 8 x 10mm_2025
Released Date Sep 7, 2026
Last Modified Date Sep 5, 2026 9:03 PM UTC
Pinout / Pin List Click Here (Member Only)

GWC1J470MCO1GS Details

Manufacturer Part Number:
GWC1J470MCO1GS
Manufacturer:
Nichicon Corporation

Trust Checks

Community Provided

System Verified

Community Approved

GWC1J470MCO1GS Overview

Use the download button to access the GWC1J470MCO1GS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like GWC1J, or try a keyword search, such as Visible LEDs
