H1601CG - Mentech

Description: 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount

Download H1601CG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

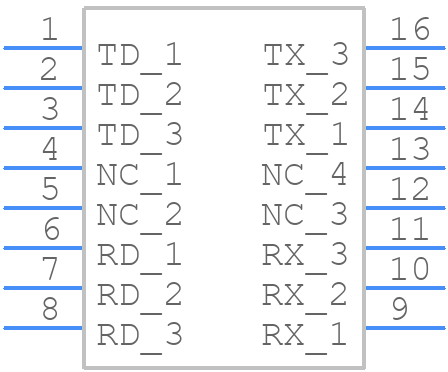

Symbol
H1601CG - Mentech - PCB symbol
click to zoom
PCB Footprints
H1601CG - Mentech PCB footprint - Small Outline Packages - Small Outline Packages - H1601CG
click to zoom
3D Models
H1601CG - Mentech - 3D model - Small Outline Packages - H1601CG
click to zoom

H1601CG Details

  • Manufacturer Part Number:

    H1601CG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    Dongguan Mentech Optical & Magnetic Co Ltd

  • Additional Feature:

    COMPATIBLE WITH IEEE 802.3

  • Application:

    10/100 BASE

  • Height:

    5.84 mm

  • Isolation Voltage:

    1500 V

  • Length:

    12.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT;1CT:1CT

  • Width:

    6.9 mm

H1601CG Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the H1601CG is -20°C to 40°C (-4°F to 104°F) to prevent damage to the sensor.
  • The H1601CG has built-in EMI shielding and filtering to minimize the effects of electromagnetic interference, but it's still recommended to follow proper PCB design and layout practices to ensure optimal performance.
  • The typical response time of the H1601CG is around 10-20 ms, but this can vary depending on the specific application and operating conditions.
  • Yes, the H1601CG is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and installation procedures to ensure reliable operation.
  • The H1601CG has built-in temperature compensation, which ensures that the sensor's output remains stable across a wide operating temperature range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H1601CG Overview

Use the download button to access the H1601CG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like H1601, or try a keyword search, such as Pulse/Datacom Transformers
