H26M41204HPR - Hynix

Description: SK hynix e-NAND consists of NAND flash and MMC controlle

Download H26M41204HPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

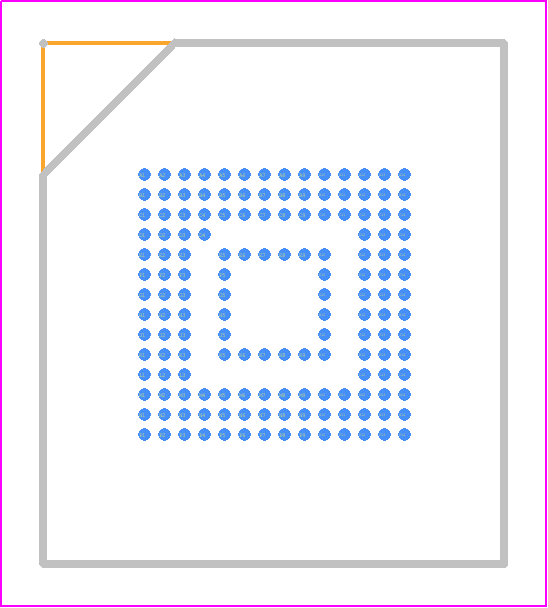

H26M41204HPR - Hynix PCB footprint - BGA - BGA - 11.5mm x13.0mm x0.8mm_2021
click to zoom
3D Models
H26M41204HPR - Hynix  - 3D model - BGA - 11.5mm x13.0mm x0.8mm_2021
click to zoom

H26M41204HPR Details

  • Manufacturer Part Number:

    H26M41204HPR

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-153

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2018-09-11

  • Manufacturer:

    SK Hynix Inc

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    200 MHz

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    68719476736 bit

  • Memory IC Type:

    eMMC

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    8589934592 words

  • Number of Words Code:

    8000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    EMMC 5.1

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NAND TYPE

  • Width:

    11.5 mm

  • Write Protection:

    SOFTWARE

H26M41204HPR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the H26M41204HPR is 0°C to 95°C.
  • To ensure signal integrity, it is recommended to use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB design. Additionally, using a DDR4-compliant layout and following the JEDEC standard for DDR4 SDRAM can help minimize signal degradation.
  • The recommended refresh rate for the H26M41204HPR is 4,096 refreshes per second, with a refresh interval of 7.8 microseconds.
  • The H26M41204HPR is designed to operate at a voltage supply of 1.2V, but it can also operate at a voltage supply of 1.35V with some performance degradation. However, it is not recommended to use this DDR4 SDRAM with a voltage supply outside of the 1.2V to 1.35V range.
  • The H26M41204HPR uses a 72-bit data bus, which includes 8 bits of error-correcting code (ECC) to detect and correct errors. In the event of an error, the system can retry the transaction to ensure data integrity.
