H3LIS200DLTR - STMicroelectronics

Description: STMicroelectronics H3LIS200DLTR 3-Axis Accelerometer Ic, 2.16 → 3.6 V 16-Pin TFLGA

Download H3LIS200DLTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

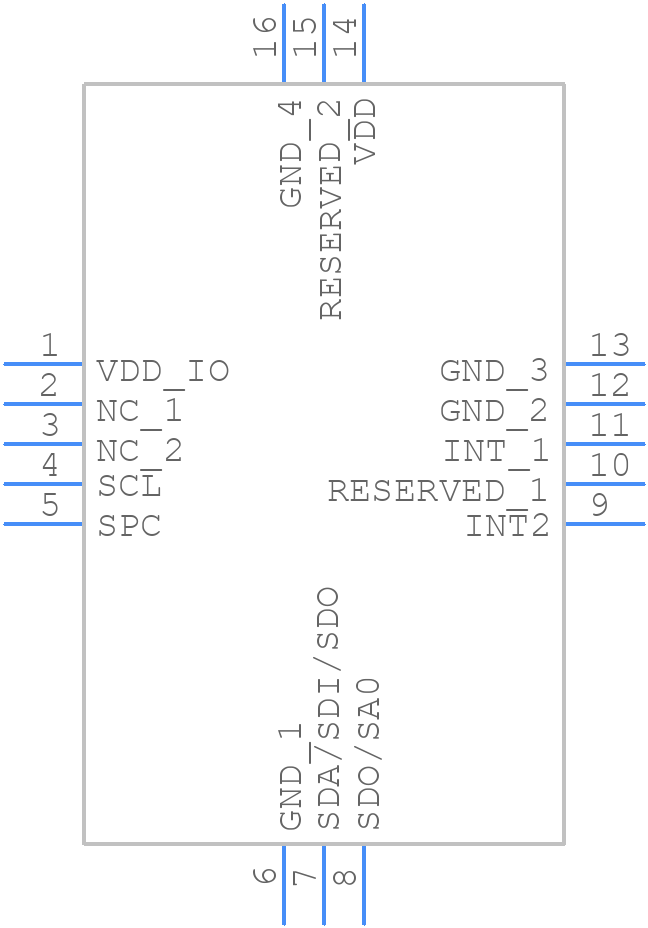

H3LIS200DLTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
H3LIS200DLTR - STMicroelectronics PCB footprint - Other - Other - LGA16R50P3X5_300X300X100
click to zoom
3D Models
H3LIS200DLTR - STMicroelectronics - 3D model - Other - LGA16R50P3X5_300X300X100
click to zoom

H3LIS200DLTR Details

  • Manufacturer Part Number:

    H3LIS200DLTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFLGA-16

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.37-1.539V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.16 V

  • Surface Mount:

    YES

H3LIS200DLTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDDIO before VDD. This ensures that the internal voltage regulators are properly powered up.
  • To configure the H3LIS200DLTR for low-power mode, set the LPEN bit in the CTRL_REG1 register to 1. This reduces the current consumption to approximately 10 μA.
  • The maximum acceleration range of the H3LIS200DLTR is ±400 g. However, the device can be configured to measure accelerations up to ±1000 g with reduced sensitivity.
  • The H3LIS200DLTR can be interfaced with a microcontroller using the SPI or I2C protocol. The device has a 16-bit data output, and the communication protocol can be selected using the CS_PIN_CFG register.
  • The operating temperature range of the H3LIS200DLTR is -40°C to 85°C. However, the device can be operated at temperatures up to 105°C with reduced accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H3LIS200DLTR Overview

Use the download button to access the H3LIS200DLTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like H3LIS, or try a keyword search, such as Other Sensors/Transducers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
